June 21, 2022MW Mean Well Meanwell 1600W Rack Mountable Front End Battery Charger RCB-1600 series
Features
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I²C interface, PMBus protocol (Optional CANBus protocol)
- Output voltage and current programmable
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- Forced air cooling by built-in DC fan
- Built-in OR-ing FET, support hot swap (hot plug)
- Active current sharing up to 8000W for one 19″ rack shelf
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
Mean Well Battery Charger RCB-1600 Series Data Sheet Download
Description
MW RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows RCB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management. There are three other series of battery chargers, and they are DBR-3200 series, DBU-3200 series, RPB-1600 series.

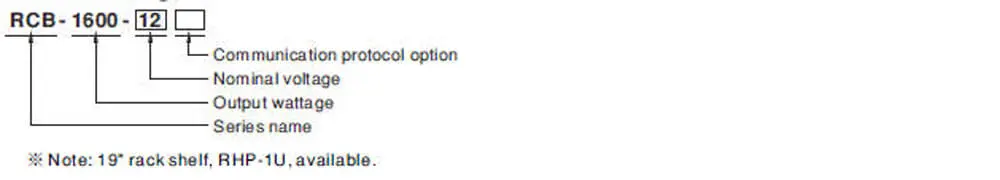

Mean Well Battery Charger RCB-1600 Series Model Encoding
| Type | Communication Protocol | Note |
| Blank | PMBus protocol | In Stock |
| CAN | CANBus protocol | By request |
Specification
| MODEL | RCB-1600-12 | RCB-1600-24 | RCB-1600-48 | |
|
OUTPUT |
BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | 27.6V | 55.2V | |
| CONSTANT CURRENT(CC)(default) | 100A | 55A | 27.5A | |
| RATED POWER | 1440W | 1584W | 1584W | |
|
VOLTAGE ADJ. RANGE |
By built-in potentiometer, SVR | |||
| 11.5 ~ 15V | 23.5 ~ 30V | 47.5 ~ 58.8V | ||
| RECOMMENDED BATTERY
CAPACITY(AMP HOURS) Note.3 |
330 ~ 1000Ah |
180 ~ 550Ah |
90 ~ 270Ah |
|
| LEAKAGE CURRENT FROM
BATTERY (Typ.) Note.8 |
<45mA |
|||
|
INPUT |
VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 90.5% | 92% | 93% | |
| AC CURRENT (Typ.) Note.4 | 14A/115VAC 8A/230VAC | 15A/115VAC 8.5A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | |||
| LEAKAGE CURRENT | <1.5mA / 230VAC | |||
|
PROTECTION |
OVER VOLTAGE |
15.75 ~ 18.75V | 31.5 ~ 37.5V | 63 ~ 75V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
FUNCTION |
OUTPUT VOLTAGE PROGRAMMABLE(PV) Note 5 | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual. | ||
| OUTPUT CURRENT PROGRAMMABLE(PC) Note 5 | Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual. | |||
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual | |||
| TEMPERATURE COMPENSATION | -3mV / ℃ / cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells) | |||
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |||
| AC OK SIGNAL | The isolated TTL signal out. Please refer to the Installation Manual | |||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V) | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |||
|
OTHERS |
MTBF | 476.7K hrs min. Telcordia SR-332 (Bellcore) ; 38.7K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 300*85*41mm (L*W*H) | |||
| PACKING | 1.87Kg; 6pcs/12.2Kg/1.16CUFT | |||
Application
- Large scale DC UPS or emergency backup system
- Marine battery charger module
- Electric scooter or vehicle charger station
- Wastewater treatment system
- Electrolysis system
