June 24, 2023Mean Well LRS-600 Series Enclosed Power Supply (LRS-600-5/12/24/36/48)
Features
-
MEAN WELL patented circuitry and case design
(Application Nos. 202220241473.0, 202230060511.8) -
AC input range selectable via switch
-
Can withstand 300VAC surge input for 5 seconds
-
Protections: Short circuit / Overload / Overvoltage / Overtemperature
-
Forced air cooling
-
Built-in cooling fan with ON/OFF control
-
1U low-profile design
-
Withstands 5G vibration test
-
High operating temperature up to 65°C
-
Operating altitude up to 5000 meters
-
3-year warranty
-
MTBF > 1,000,000 hours
Mean Well LRS-600 Series AC-DC Enclosed Power Supply Data Sheet Download
This datasheet covers the complete Mean Well LRS-600 Series 600W enclosed AC/DC switching power supplies, including the following models: LRS-600-5, LRS-600-12, LRS-600-15, LRS-600-24, LRS-600-27, LRS-600-36, and LRS-600-48.
Description
The Mean Well LRS-600 Series is a 600W single-output enclosed AC/DC power supply with a compact 41mm low-profile design.
It supports selectable AC input of 115VAC or 230VAC via a switch and offers a wide range of output voltages: 5V (LRS-600-5), 12V (LRS-600-12), 15V (LRS-600-15), 24V (LRS-600-24), 27V (LRS-600-27), 36V (LRS-600-36), and 48V (LRS-600-48).
With up to 92% high efficiency and a built-in long-life fan, the LRS-600 Series operates reliably at full load from -20°C to +65°C.
It features comprehensive protections, passes 5G vibration tests, and meets international safety standards.
Designed for industrial applications, the series provides a cost-effective, reliable power solution for automation, CNC machinery, control systems, and other demanding environments.

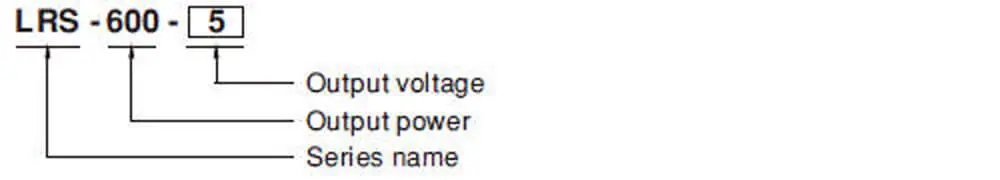

Mean Well LRS-600 Series Model Encoding
The LRS-600 Series model encoding covers all available models in the series, including LRS-600-5, LRS-600-12, LRS-600-15, LRS-600-24, LRS-600-27, LRS-600-36, and LRS-600-48.
By referencing these model numbers, customers can easily identify the exact output voltage and configuration for their application.
Specification
| MODEL | LRS-600-5 | LRS-600-12 | LRS-600-15 | LRS-600-24 | LRS-600-27 | LRS-600-36 | LRS-600-48 | |
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 15V | 24V | 27V | 36V | 48V |
| RATED CURRENT | 100A | 50A | 40A | 25A | 22.2A | 16.6A | 12.5A | |
| CURRENT RANGE | 0 ~ 100A | 0 ~ 50A | 0 ~ 40A | 0 ~ 25A | 0 ~ 22.2A | 0 ~ 16.6A | 0 ~ 12.5A | |
| RATED POWER | 500W | 600W | 600W | 600W | 599.4W | 597.6W | 600W | |
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | 200mVp-p | 200mVp-p | 240mVp-p | 270mVp-p | 360mVp-p | 360mVp-p | |
| VOLTAGE ADJ. RANGE Note.3 | 4.75 ~ 5.5V | 11.4 ~ 13.2V | 14.25 ~ 16.5V | 22.8 ~ 26.4V | 25.65 ~ 29.7V | 34.2 ~ 39.6V | 45.6 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.4 | ±2.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION Note.5 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION Note.6 | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.7 | 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | |||||||
|
INPUT |
VOLTAGE RANGE Note.8 | 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC) | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 86% | 90% | 90% | 91% | 91% | 92% | 92% | |
| AC CURRENT (Typ.) | 12A/115VAC 7.5A/230VAC | |||||||
| INRUSH CURRENT (Typ.) | 35A/115VAC 60A/230VAC | |||||||
| LEAKAGE CURRENT | <2mA / 240VAC | |||||||
|
PROTECTION (Note.9) |
OVER LOAD | 105 ~ 150% rated output power | ||||||
| Constant current limiting, unit will shutdown after 3 sec. re-power on to recover | ||||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 18 ~ 21V | 27.6 ~ 32.4V | 31 ~ 36.5V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||
| FUNCTION | FAN ON/OFF CONTROL
(Typ.) |
RTH3≧50℃ FAN ON, ≦40℃ FAN OFF | ||||||
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +65℃ (Refer to “Derating Curve”) | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||
|
SAFETY |
SAFETY STANDARDS | BS IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1: 2005,
AS/NZS62368.1 approved |
||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BSMI CNS13438, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to EAC TP TC 020 | |||||||
|
OTHERS |
MTBF | 1533.4K hrs min. Telcordia SR-332(Bellcore); 301.7K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 225*124*41mm (L*W*H) | |||||||
| PACKING | 0.95Kg/12pcs/12.4Kg/0.78CUFT | |||||||
Application
-
Industrial automation machinery
-
Industrial control systems
-
Mechanical and electrical equipment
-
Electronic instruments and devices
