Features
- Constant current design
- Universal AC input / Full range
- Class Ⅱ power unit, no FG
- Fully isolated plastic case
- IP42 design
- Small and compact size
- Cooling by free air convection
- Protection:Short circuit
- No load power consumption <0.5W
- 100% full load burn-in test
- Low cost / High reliability
- 2 years warranty
Mean Well LED Driver APC-8 Series Data Sheet Download
Description
Mean Well LED driver APC-8 series is one 8W AC/DC constant current mode single output LED power supply. It accepts the full range input 90~264VAC and provides four models with different output current, 250mA(APC-8-250), 350mA(APC-8-350), 500mA(APC-8-500) and 700mA(APC-8-700), respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APC-8 ideally fits the entry-level LED applications. In this family, there are APC-12 series, APC-16 series, APC-25 series and APC-35 series.

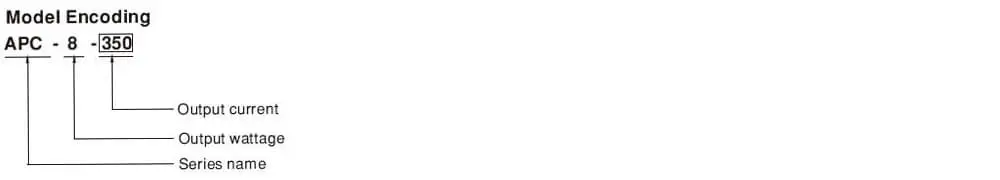

Mean Well LED Driver APC-8 Series Model Encoding
Specification
| MODEL | APC-8-250 | APC-8-350 | APC-8-500 | APC-8-700 | |
|
OUTPUT |
RATED CURRENT | 250mA | 350mA | 500mA | 700mA |
| OPERATING VOLTAGE RANGE Note.4 | 16~32V | 11~23V | 8~16V | 6~11V | |
| RATED POWER | 8W | 8.05W | 8W | 7.7W | |
| RIPPLE & NOISE (max.) Note.2 | 350mVp-p | 300mVp-p | 300mVp-p | 250mVp-p | |
| NO LOAD OUTPUT VOLTAGE(max.) | 38V | 29V | 24V | 17V | |
| CURRENT ACCURACY | ±8.0% | ||||
| SETUP, RISE TIME | 500ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 20ms/230VAC at full load | ||||
|
INPUT |
VOLTAGE RANGE Note.3 | 90 ~ 264VAC 127 ~ 370VDC (Note.5) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY(Typ.) | 82.5% | 81.5% | 81% | 80% | |
| AC CURRENT | 0.15A/230VAC;0.3A/115VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 70A (twidth=120μs measured at 50% Ipeak) at 230VAC | ||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ 70℃ (Refer to “Derating Curve”) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~45℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.7 | UL8750, CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004; BS EN/EN 62368-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032, BS EN/EN61000-3-2, BS EN/EN61000-3-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN55024, BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level (surge 2KV), EAC TP TC 020 | ||||
|
OTHERS |
MTBF | 14511.7K hrs min. Telcordia SR-332 (Bellcore) ; 2275.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 60*30*23.5mm(L*W*H) | ||||
| PACKING | 0.05Kg; 144pcs/7.6Kg/0.70CUFT | ||||
Application
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Mean Well LED Driver APC-8 Series Unboxing
What you see in this video is what you get for the model APC-8-350.
Mean Well LED Driver APC-8 Series Video Show
The model in this video is APC-8-350 from Mean Well LED driver APC-8 series.
