May 21, 2022150W Constant Current Mode LED Driver HLG-120H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Data Sheet Download
Description
HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

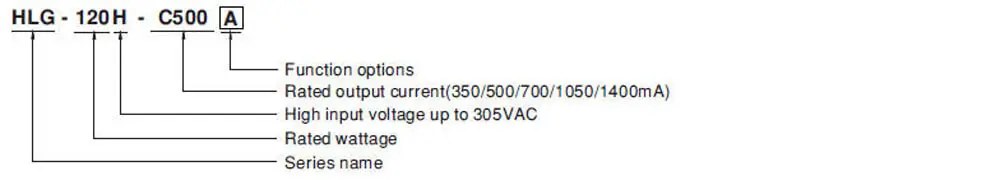

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending). | By request |
Specification
| MODEL | HLG-120H-C350 | HLG-120H-C500 | HLG-120H-C700 | HLG-120H-C1050 | HLG-120H-C1400 | ||||
|
OUTPUT |
RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | 1400mA | |||
| RATED POWER | 150.5W | 150W | 150.5W | 155.4W | 151.2W | ||||
| CONSTANT CURRENT REGION Note.2 | 215 ~ 430V | 150V ~ 300V | 107V ~ 215V | 74V ~ 148V | 54V ~ 108V | ||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||
| 175 ~ 350mA | 250 ~ 500mA | 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | |||||
| CURRENT RIPPLE | 8.0% max. @rated current | ||||||||
| CURRENT TOLERANCE | ±5% | ||||||||
| SET UP TIME | Note.4 | 1000ms / 115VAC | 500ms / 230VAC | ||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||
| EFFICIENCY (Typ.) | 94% | 94% | 94% | 94% | 93.5% | ||||
| AC CURRENT (Typ.) | 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
475 ~ 495V | 335 ~ 355V | 240 ~ 260V | 165 ~ 175V | 120 ~ 130V | ||||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.6 |
UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent,GB19510.1, GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION |
Note.6 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,
EAC TP TC 020 |
|||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 652.2K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 220*68*38.8mm (L*W*H) | ||||||||
| PACKING | 1.04Kg; 12pcs/13.5Kg/0.8CUFT | ||||||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
