May 20, 2022MW Mean Well Meanwell 600W Constant Voltage + Constant Current LED Driver HLG-600H series
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Standby power consumption <0.5W at remote off
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-600H Series Data Sheet Download
Description
HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

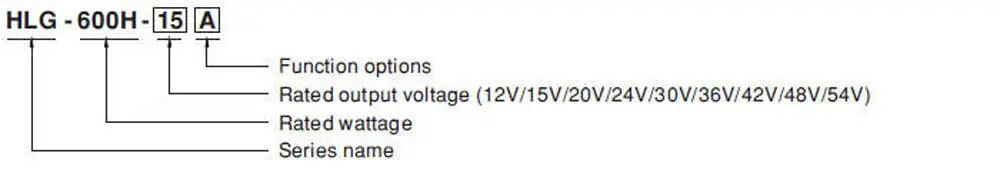

Mean Well LED Driver HLG-600H Series Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10VDC,10V PWM signal and resistance) |
In Stock |
| Blank | IP67 | Io and Vo fixed | In Stock |
Specification
| MODEL | HLG-600H-12 | HLG-600H-15 | HLG-600H-20 | HLG-600H-24 | HLG-600H-30 | HLG-600H-36 | HLG-600H-42 | HLG-600H-48 | HLG-600H-54 | |
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 6 ~12V | 7.5 ~ 15V | 10 ~ 20V | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 40A | 36A | 28A | 25A | 20A | 16.7A | 14.3A | 12.5A | 11.2A | |
| RATED POWER | 480W | 540W | 560W | 600W | 600W | 601.2W | 600.6W | 600W | 604.8W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
|
VOLTAGE ADJ. RANGE |
Adjustable for A-Type only (via built-in potentiometer) | |||||||||
| 10.2 ~ 12.6V | 12.7 ~ 15.8V | 17 ~ 21V | 20.4 ~ 25.2V | 25.5 ~ 31.5V | 30.6 ~ 37.8V | 35.7 ~ 44.1V | 40.8 ~ 50.4V | 45.9 ~ 56.7V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A -Type only (via built-in potentiometer) | |||||||||
| 20 ~ 40A | 18 ~ 36A | 14 ~ 28A | 12.5 ~ 25A | 10 ~ 20A | 8.3 ~16.7A | 7.1~ 14.3A | 6.2 ~ 12.5A | 5.6~11.2A | ||
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±2.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.6 | 500ms, 80ms/115VAC 500ms,80ms/230VAC | |||||||||
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |||||||||
|
INPUT |
VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||||
| EFFICIENCY (Typ.) (230Vac) | 92% | 93.5% | 94.5% | 95% | 95% | 95.5% | 96% | 96% | 96% | |
| EFFICIENCY (Typ.) (277Vac) | 92.5% | 93.5% | 94.5% | 95% | 95% | 95.5% | 96% | 96% | 96% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||||
| STANDBY POWER CONSUMPTION | <0.5W at remote off | |||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
13 ~ 16V | 16.5 ~ 20.5V | 22 ~ 26V | 26 ~ 30V | 32.5 ~ 36.5V | 39.5 ~ 43.5V | 46 ~ 50V | 52.5 ~ 56.5V | 59 ~ 63V | |
| Shut down o/p voltage with auto-recovery or re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||||||||
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : “High” >2 ~ 5V or Open circuit Power off : “Low” <0 ~ 0.5V or Short circuit | ||||||||
| 5V STANDBY | 5VSB : [email protected] ; tolerance±5%, ripple : 100mVp-p(max.) | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase= -40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase= +90℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL60950-1, UL8750 (type” HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, CCC GB4943.1, EAC TP TC 004, AS/NZS 60950.1(by CB) (AB type except), KC61347-1, KC61347-2-13(for 24A,36A,48A,54A only) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only) | |||||||||
|
OTHERS |
MTBF | 76.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 280*144*48.5mm (L*W*H) | |||||||||
| PACKING | 3.9Kg; 4pcs/16.6Kg/0.9CUFT | |||||||||
Application
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
