MW Mean Well Meanwell 90W Constant Current Mode LED Driver HLG-80H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-80H-C series Data Sheet Download
Description
HLG-80H-C series is a 90W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-80H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

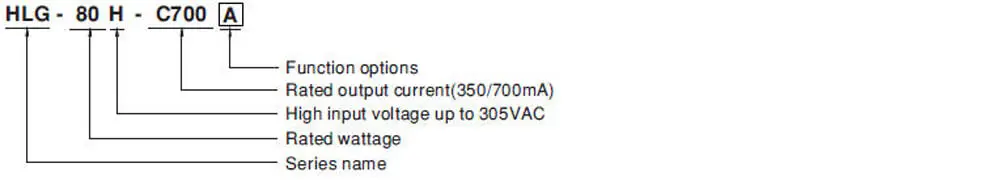

Mean Well LED Driver HLG-80H-C series Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending). | By request |
Specification
| MODEL | HLG-80H-C350 | HLG-80H-C700 | |||
|
OUTPUT |
RATED CURRENT | 350mA | 700mA | ||
| RATED POWER | 89.95W | 90.3W | |||
| CONSTANT CURRENT REGION Note.2 | A-Type : 128V ~ 257V B-Type : 167V ~ 257V | A-Type : 64V ~ 129V | B-Type : 84V ~ 129V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||
| 210 ~ 350mA | 420 ~ 700mA | ||||
| CURRENT RIPPLE | 8.0% max. @rated current | ||||
| CURRENT TOLERANCE | ±5% | ||||
| SET UP TIME | Note.4 | 500ms/115VAC, 230VAC | |||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||
| EFFICIENCY (Typ.) | 91.5% | 91.5% | |||
| AC CURRENT (Typ.) | 0.88A / 115VAC 0.45A / 230VAC 0.38A / 277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=410μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC |
||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||
|
OVER VOLTAGE |
300 ~ 340V | 150 ~ 170V | |||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | |||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||
| MAX. CASE TEMP. | Tcase=+80℃ | ||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.6 |
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent,GB19510.1, GB19510.14,EAC TP TC 004,IP65 or IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION |
Note.6 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,
EAC TP TC 020 |
|||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),
EAC TP TC 020 |
||||
|
OTHERS |
MTBF | 861.8K hrs min. Telcordia SR-332 (Bellcore) ; 309.7K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 195.6*61.5*38.8 mm (L*W*H) | ||||
| PACKING | 0.84Kg; 16pcs/14.4Kg/0.54CUFT | ||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
