May 22, 202265W Constant Current Mode LED Driver HVGC-65 series
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-65 series is a 65W LED AC/DC LED power supply eaturing the constant cu ent mode and high voltage output. HVGC-65 operates from 180 528VAC and offers models with different rated current ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

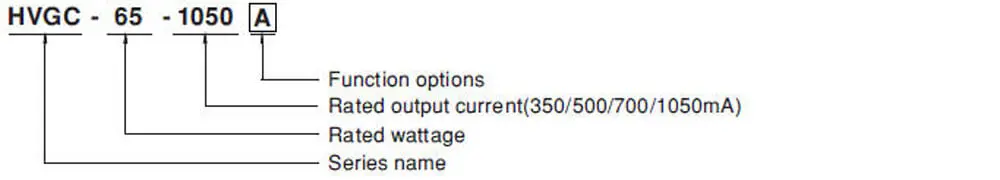

Model Encoding
Type | IP Level | Function | Note |
A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
AB | IP65 |
Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By request |
Specification
MODEL | HVGC-65-350 | HVGC-65-500 | HVGC-65-700 | HVGC-65-1050 | ||||
OUTPUT |
RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | |||
RATED POWER | 65.1W | 65W | 65.1W | 65.1W | ||||
CONSTANT CURRENT REGION Note.2 | 18 ~ 186V | 13 ~ 130V | 9 ~ 93V | 6 ~ 62V | ||||
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||
210 ~ 350mA | 300 ~ 500mA | 420 ~ 700mA | 630 ~ 1050mA | |||||
CURRENT TOLERANCE | ±5.0% | |||||||
CURRENT RIPPLE Note.5 | 5.0% max. @rated current | |||||||
SET UP TIME | Note.4 | 500ms / 230Vac 400ms / 347VAC,480VAC | ||||||
INPUT |
VOLTAGE RANGE |
Note.3 |
180 ~ 528VAC 254VDC ~ 747VDC (Please refer to “STATIC CHARACTERISTIC” section) |
|||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||
EFFICIENCY (Typ.) | 90% | 90.5% | 90.5% | 90% | ||||
AC CURRENT (Typ.) | 0.22A / 347VAC 0.18A / 480VAC | |||||||
INRUSH CURRENT (Typ.) | COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||
MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC | |||||||
LEAKAGE CURRENT | <0.75mA / 480VAC | |||||||
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||
OVER VOLTAGE |
195 ~ 210V | 137 ~ 150V | 98 ~ 107V | 65 ~ 72V | ||||
Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||
MAX. CASE TEMP. | Tcase=+80℃ | |||||||
WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||
VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
SAFETY & EMC |
SAFETY STANDARDS |
UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved |
||||||
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
EMC EMISSION |
Note.6 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | ||||||
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||
OTHERS |
MTBF | 611K hrs min. Telcordia SR-332 (Bellcore) ; 202.7K hrs min. MIL-HDBK-217F (25℃) | ||||||
DIMENSION | 189*61.5*36.8mm (L*W*H) | |||||||
PACKING | 0.77Kg; 18pcs/14.9Kg/0.89CUFT |
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
