The Mean Well A301/302-1K0 series is a 1000W modified sine wave DC-AC power inverter. It is designed to provide reliable AC output from a 12Vdc or 24Vdc power source.The series includes 110V and 230V output versions. It also offers multiple AC receptacle options and built-in protection functions.
This inverter series is suitable for vehicle systems, portable equipment, backup power, and other DC to AC conversion applications.
The A301/302-1K0 series is a 1000W DC-AC power inverter. It converts 12Vdc or 24Vdc battery power into AC output for a wide range of equipment.
The product line is available in 110Vac / 60Hz and 230Vac / 50Hz versions to support different regional power requirements.
The A301 models are 12V inverter versions, while the A302 models are 24V inverter versions. Standard order numbers include A301-1K0-B2, A301-1K0-F3, A302-1K0-B2, and A302-1K0-F3.
Each model delivers 1000W rated power, 1200W peak power for less than 30 minutes, and 2400W surge power. Typical applications include home appliances, power tools, office equipment, portable equipment, and vehicle systems.
Need help choosing the right model? Compare the main specifications of A301-1K0-B2, A301-1K0-F3, A302-1K0-B2, and A302-1K0-F3 below.
The table below compares the main electrical specifications of the A301/302-1K0 series, including DC input, DC current, AC output, frequency, rated power, peak power, surge power, and typical efficiency.
It helps users quickly compare A301-1K0-B2, A301-1K0-F3, A302-1K0-B2, and A302-1K0-F3 and choose the right model for their application requirements.
| Model | DC Input | DC Current | AC Output | Frequency | Rated Power | Peak Power (<30 min.) | Surge Power | Efficiency (Typ.) |
|---|---|---|---|---|---|---|---|---|
| A301-1K0-B2 | 12Vdc | 110A | 110Vac | 60Hz ±1% | 1000W | 1200W | 2400W | 82% |
| A301-1K0-F3 | 12Vdc | 110A | 230Vac | 50Hz ±1% | 1000W | 1200W | 2400W | 82% |
| A302-1K0-B2 | 24Vdc | 55A | 110Vac | 60Hz ±1% | 1000W | 1200W | 2400W | 85% |
| A302-1K0-F3 | 24Vdc | 55A | 230Vac | 50Hz ±1% | 1000W | 1200W | 2400W | 85% |
Need more technical details? Continue below for model-specific descriptions, mechanical dimensions, applications, and safety information.
This product line includes four standard models: A301-1K0-B2, A301-1K0-F3, A302-1K0-B2, and A302-1K0-F3.
All models in the A301/302-1K0 series share the same 1000W rated output, modified sine wave architecture, and built-in protection design, while offering different DC input and AC output combinations.
A301-1K0-B2 is a 12Vdc input, 110Vac output model with 60Hz frequency. It provides 1000W rated power, 1200W peak power for less than 30 minutes, and 2400W surge power. This model is a practical option for 12V battery systems that require 110V AC output.
A301-1K0-F3 is a 12Vdc input, 230Vac output model with 50Hz frequency. It provides 1000W rated power, 1200W peak power for less than 30 minutes, and 2400W surge power. This model is suitable for 12V inverter applications that need 230V AC output in 50Hz markets.
A302-1K0-B2 is a 24Vdc input, 110Vac output model with 60Hz frequency. It provides 1000W rated power, 1200W peak power for less than 30 minutes, and 2400W surge power. Compared with the 12V versions, this model operates with lower DC current and higher typical efficiency.
A302-1K0-F3 is a 24Vdc input, 230Vac output model with 50Hz frequency. It provides 1000W rated power, 1200W peak power for less than 30 minutes, and 2400W surge power. This model is well suited for 24V battery systems that require 230V AC output for portable, vehicle, or backup power applications.
The A301/302-1K0 series supports optional remote control and includes multiple built-in protection functions. These features help improve safety and make operation more practical in DC-AC power applications.
It is suitable for vehicle systems, portable equipment, backup power applications, and other installations that require reliable inverter output and protective shutdown functions.
Optional remote control is available for this series. The datasheet lists RC-1700 as the related accessory.
This function provides a more convenient way to control inverter operation when direct access to the unit is not ideal. It can be useful in vehicle, mobile, or enclosure-based installations where flexible ON/OFF control is needed.
Built-in protections include low battery alarm, low battery shutdown, over voltage protection, over temperature protection, output short protection, overload shutdown, and reverse polarity protection by fuse.
These functions help improve operating safety and support more reliable performance in demanding DC-AC power environments.
The datasheet states that the cooling fan turns on above 40°C through NTC control. This helps maintain thermal performance under load while reducing unnecessary fan operation at lower temperatures.
Need installation and wiring details for the A301/302-1K0 series? Continue below to review mechanical dimensions, front layout, and application information.

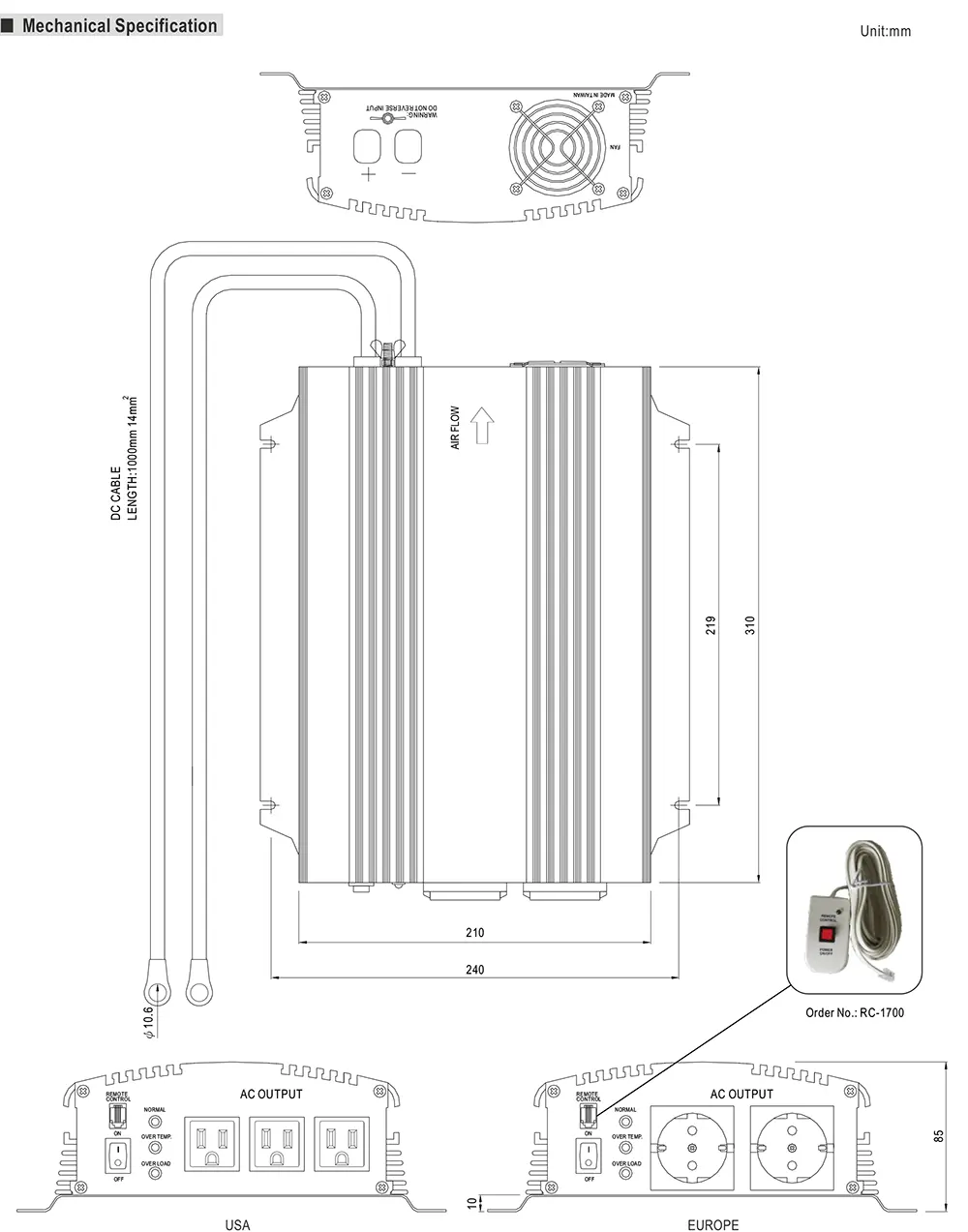

The A301/302-1K0 series features an enclosed inverter design with overall dimensions of 310 × 210 × 85mm. It is suitable for applications that require reliable DC-AC conversion and practical front access.
The mechanical layout includes DC cable input, AC output receptacles, front status indicators, and remote control connection position.
The overall mechanical size is 310 × 210 × 85mm. This enclosed design provides a practical installation format for systems that require 1000W DC-AC power conversion.
This series includes 1000mm DC cables with R type terminals, front AC output receptacles, indicator positions, ON/OFF control area, and remote control connection layout.
The mechanical drawing also shows USA and Europe output versions for different AC outlet configurations.
The datasheet states that the cooling fan turns on above 40°C through NTC control. During installation, users should review the front layout, cable routing, ventilation space, and air flow direction to support proper cooling, wiring access, and maintenance convenience.
Need application and compliance information for the A301/302-1K0 series? Continue below to explore recommended applications, certifications, and safety information.
The A301/302-1K0 series is suitable for applications that require reliable DC-AC power conversion from a 12Vdc or 24Vdc source. According to the datasheet, this series is designed for home appliances, power tools, office equipment, portable equipment, and vehicle-based power applications.
With its 1000W rated output, modified sine wave design, and built-in protection functions, the A301/302-1K0 series is well suited for systems that require practical inverter performance, flexible AC output options, and dependable operation in mobile or standalone power environments.
Need certification and compliance details for your project? Continue below to review the safety standards, EMC information, and related approval data for this series.
The A301/302-1K0 series includes key safety and EMC compliance information for DC-AC power inverter applications in vehicle, portable, and project-based power systems.
According to the official datasheet, the series includes the following approval and compliance information for international use.
The datasheet also lists built-in protection functions, including low battery alarm, low battery shutdown, over voltage protection, over temperature protection, output short protection, overload shutdown, and reverse polarity protection by fuse.
These features help support safer operation and more reliable performance in demanding DC-AC inverter applications.
Need more product details before sending an inquiry? Continue below to review common questions about the A301/302-1K0 series.
The A301 models are 12Vdc versions with an input range of 10–15Vdc. The A302 models are 24Vdc versions with an input range of 21–30Vdc.
The standard models are A301-1K0-B2, A301-1K0-F3, A302-1K0-B2, and A302-1K0-F3. These versions provide different combinations of DC input, AC output, and frequency.
The A301/302-1K0 series is available in 110Vac / 60Hz and 230Vac / 50Hz versions. This allows users to choose the right model for different regional power requirements and application needs.
Each model provides 1000W rated power. It also supports 1200W peak power for less than 30 minutes and 2400W surge power.
This inverter uses modified sine wave output. It is suitable for many DC-AC power conversion applications where modified sine wave output is acceptable.
The A301/302-1K0 series includes low battery alarm, low battery shutdown, over voltage protection, over temperature protection, output short protection, overload shutdown, and reverse polarity protection by fuse.
The overall dimensions are 310 × 210 × 85 mm. The mechanical drawing also shows 1000mm DC cables with R type terminals and front AC output receptacles.
Yes. Optional remote control is available, and the datasheet lists RC-1700 as the related accessory.
According to the datasheet, typical applications include home appliances, power tools, office equipment, portable equipment, and vehicle-based power systems.
