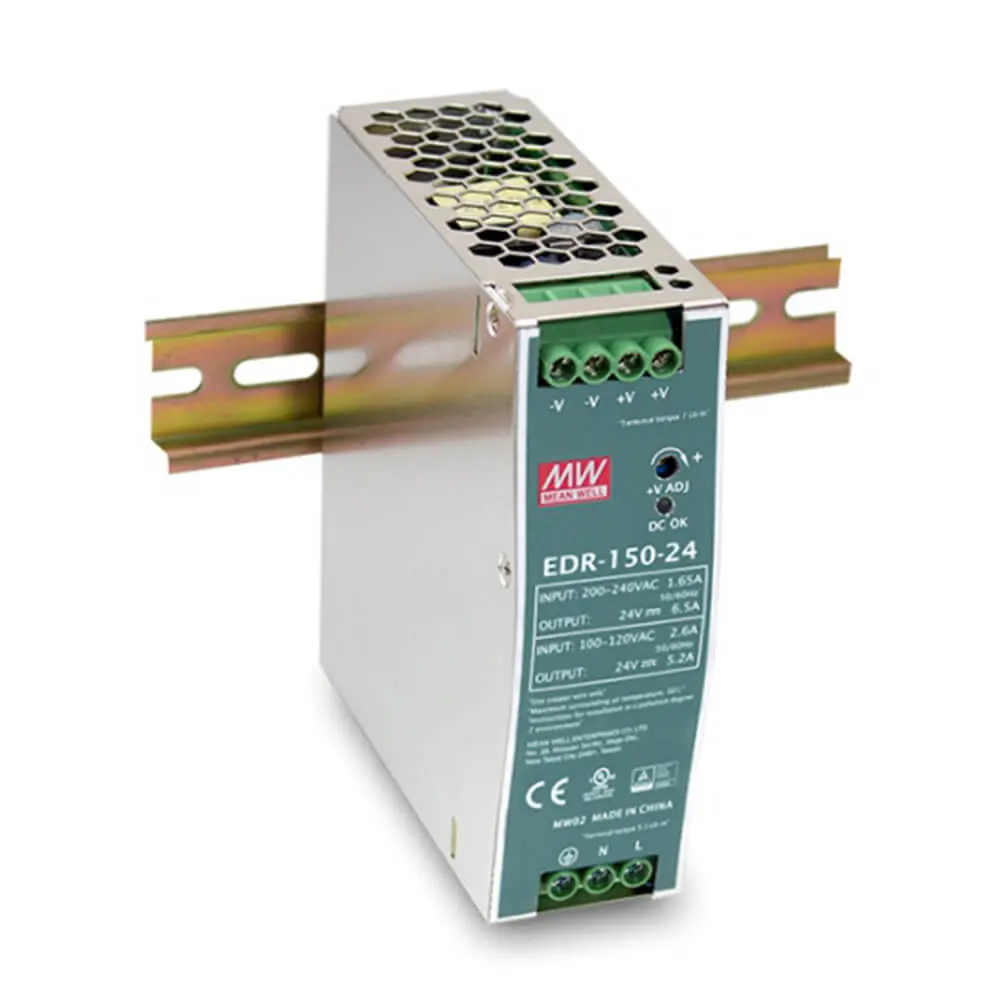

September 16, 2023MW Mean Well Meanwell 150W Single Output Switching Power Supply DIN Rail EDR-150 Series
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- 2 years warranty
Mean Well Power Supply EDR-150 Series Data Sheet Download
Description
EDR-150-24 is one economical slim DIN rail power supply series, providing up to 156W at 230VAC input. This series is adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input f rom 90VAC to 264VAC and conforms to BS EN/EN61000-3-2(≦80% Load), the norm the EuropeanUnion regulates for harmonic current.
EDR-150-24 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-150-24 a very competitive power supply solution for industrial applications.

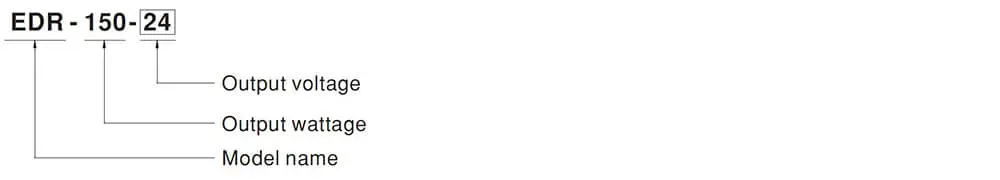

Mean Well Power Supply EDR-150 Series Model Encoding
Specification
| MODEL | EDR-150-24 | |
|
OUTPUT |
DC VOLTAGE | 24V |
| RATED CURRENT | 6.5A / 230VAC 5.2A / 115VAC | |
| CURRENT RANGE | 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC | |
| RATED POWER | 156W / 230VAC 125W / 115VAC | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 10ms/115VAC at full load | |
|
INPUT |
VOLTAGE RANGE Note.6 | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87% | |
| AC CURRENT (Typ.) | 2.6A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ.) | 20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
|
PROTECTION |
OVERLOAD Note.7 |
105 ~ 130% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed / 230VAC |
| 105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed / 115VAC |
||
| OVER VOLTAGE | 29 ~ 33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +60℃ (Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2, Class A (≦80% Load), BS EN/EN61000-3-3, EAC TP TC 020, CNS13438 Class A | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2),
heavy industry level, EAC TP TC 020 |
|
|
OTHERS |
MTBF | 2717.1K hrs min. Telcordia SR-332 (Bellcore) ; 472.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*125.2*113.5mm (W*H*D) | |
| PACKING | 0.6Kg; 20pcs/13Kg/1.16CUFT | |
Application
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Electro-mechanical apparatus
