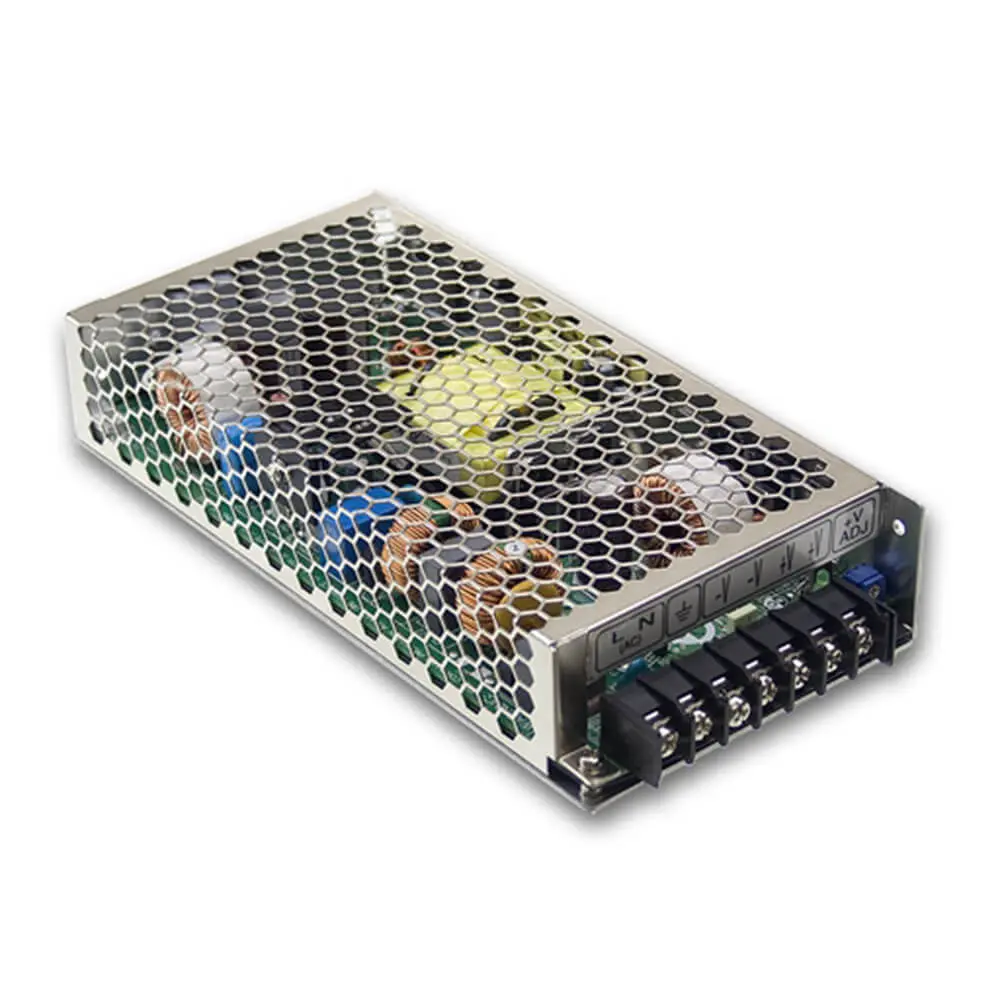

June 25, 2023MW Mean Well Meanwell 200W Single Output with PFC Fucntion Switching Power Supply HRPG-200 series
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 89%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 38mm
- Built-in remote ON-OFF control
- Stand by [email protected]
- Built-in remote sense function
- No load power consumption<0.5W
- 5 years warranty
Mean Well Enclosed Switching Power Supply HRPG-200 Series Data Sheet Download
Description
The Mean Well SMPS HRPG-200 series is a range of single output enclosed power supplies with a power rating of 200 watts. These power supplies have a universal AC input range of 85 to 264VAC and are available with output voltages of 3.3VDC (Model N0.:HRPG-200-3.3) , 5VDC (Model N0.:HRPG-200-5), 7.5VDC (Model N0.:HRPG-200-7.5), 12VDC (Model N0.:HRPG-200-12), 15VDC (Model N0.:HRPG-200-15), 24VDC (Model N0.:HRPG-200-24), 36VDC (Model N0.:HRPG-200-36), and 48VDC (Model N0.:HRPG-200-48). . The enclosed switching power supply HRPG-200 series features high efficiency up to 89%, low no-load power consumption, and built-in protections including short circuit, overload, over voltage, and over temperature. These power supplies also have a built-in active PFC function, which allows for a power factor of up to 0.99, making them ideal for use in applications that require compliance with international power regulations. The MEAN WELL with PFC function power supply HRPG-200 series is suitable for a variety of applications such as industrial automation, LED lighting, and communication equipment.
In addition, the MW SMPS HRPG-200 series features a built-in constant current limiting circuit, which allows for the power supply to be used with LED lighting applications. The power supply also has a wide operating temperature range of -40°C to +70°C, making it suitable for use in harsh environments. The Meanwell power supply HRPG-200 series is designed with a compact and rugged metal case and has a built-in fan for cooling. It also has a variety of safety certifications, including UL, TUV, and CB, ensuring its reliability and safety for use in various applications.
Specification
|
OUTPUT |
DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 40A | 35A | 26.7A | 16.7A | 13.4A | 8.4A | 5.7A | 4.3A | |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 35A | 0 ~ 26.7A | 0 ~ 16.7A | 0 ~ 13.4A | 0 ~ 8.4A | 0 ~ 5.7A | 0 ~ 4.3A | |
| RATED POWER | 132W | 175W | 200.3W | 200.4W | 201W | 201.6W | 205.2W | 206.4W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 90mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 250mVp-p | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 2.8 ~ 3.8V | 4.3 ~ 5.8V | 6.8 ~ 9V | 10.2 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 28.8 ~ 39.6V | 40.8 ~ 55.2V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||||||||
|
INPUT |
VOLTAGE RANGE Note.5 | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR (Typ.) | PF>0.95/230VAC PF>0.99/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 80% | 84% | 86% | 88% | 88% | 88% | 89% | 89% | |
| AC CURRENT (Typ.) | 2.1A/115VAC 1.1A/230VAC | ||||||||
| INRUSH CURRENT (Typ.) | 35A/115VAC 70A/230VAC | ||||||||
| LEAKAGE CURRENT | <1.2mA / 240VAC | ||||||||
|
PROTECTION |
OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.96 ~ 4.62V | 6 ~ 7V | 9.4 ~ 10.9V | 14.4 ~ 16.8V | 18.8 ~ 21.8V | 30 ~ 34.8V | 41.4 ~ 48.6V | 57.6 ~ 67.2V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| FUNCTION | 5V STANDBY | 5VSB: [email protected] ; tolerance±5%, ripple: 50mVp-p(max.) | |||||||
| REMOTE CONTROL | RC+/RC-: 4 ~10V or open = power on; 0 ~ 0.8V or short = power off | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | -40 ~ +70℃ (Refer to “Derating Curve”) | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃︶ | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 1612.1K hrs min. Telcordia SR-332 (Bellcore); 189.1K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 199*98*38mm (L*W*H) | ||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.87CUFT | ||||||||
