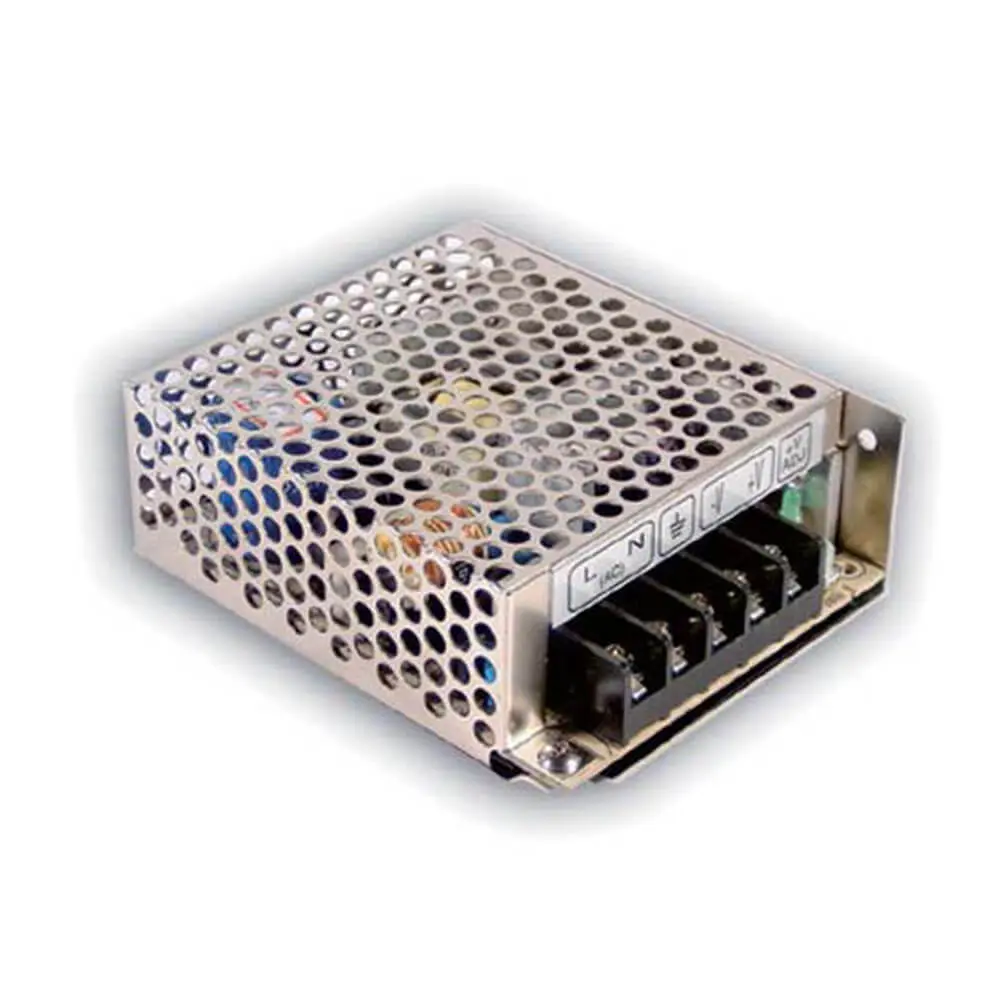

MW Mean Well Meanwell 35W Single Output Switching Power Supply RS-35 Series
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- No load power consumption<0.5W
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Description
The Mean Well RS-35 series is a line of enclosed switching power supplies designed to deliver reliable and efficient power conversion for a variety of applications. With a compact and robust design, the RS-35 series offers a universal AC input range of 88 to 264 volts, making it suitable for global use. Each model in the series provides a single output with varying voltage and current specifications, such as the RS-35-12, which delivers 12V DC at 3A, and the RS-35-24, which outputs 24V DC at 1.5A.
These power supplies are engineered with essential safety features, including short circuit, overload, and overvoltage protection, ensuring the safety and longevity of connected devices. The RS-35 series is also characterized by its efficient thermal management, utilizing free air convection cooling, which enhances performance and durability in various operating environments. With a commitment to quality, Mean Well products are compliant with international safety standards, making the RS-35 series a trusted choice for industrial, IT, and consumer electronics applications.
Mean Well AC-DC Enclosed Switching Power Supply RS-35 Series Data Sheet Download
Specification
| MODEL | RS-35-3.3 | RS-35-5 | RS-35-12 | RS-35-15 | RS-35-24 | RS-35-48 | |
|
OUTPUT |
DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 7A | 7A | 3A | 2.4A | 1.5A | 0.8A | |
| CURRENT RANGE | 0 ~ 7A | 0 ~ 7A | 0 ~ 3A | 0 ~ 2.4A | 0 ~ 1.5A | 0 ~ 0.8A | |
| RATED POWER | 23.1W | 35W | 36W | 36W | 36W | 38.4W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 2.9V ~ 3.6V | 4.5 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 22 ~ 27.6V | 42 ~ 54V | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION Note.5 | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 80ms/230VAC 15ms/115VAC at full load | ||||||
|
INPUT |
VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY(Typ.) | 76.5% | 80.5% | 84.5% | 86% | 88% | 88.5% | |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.55A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 36A/230VAC | ||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||
|
PROTECTION |
OVERLOAD |
110 ~ 150% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
3.8 ~ 4.45V | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
|
ENVIRONMENT |
WORKING TEMP. | -25 ~ +70℃ (Refer to “Derating Curve”) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 | ||||||
|
OTHERS |
MTBF | 3428.3K hrs min. Telcordia SR-332 (Bellcore); 602.6K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 99*82*36mm (L*W*H) | ||||||
| PACKING | 0.3Kg; 45pcs/14Kg/0.76CUFT | ||||||
Applications
- IT equipment: Computers, monitors, printers, and networking devices
- Audio/visual equipment: Amplifiers, speakers, and media players
- Industrial automation: Control panels, sensors, and instrumentation
- LED lighting: LED drivers for indoor and outdoor lighting applications
