MW Mean Well Meanwell 18W AC-DC Reliable Green Medical Desktop Adaptor GSM18B Series
Features
- 2 pole AC inlet IEC320-C8, Class II power unit
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.1W
- Energy efficiency level VI and meet CoC Version 5 ( except 5~9V for Level Ⅴ)
- -25~+60℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
- Various DC plug quick adapter accessory available
- 3 years warranty
Description
The GSM18B is a highly reliable 18W desktop-style medical adapter designed for single-output applications. Featuring a 2-pin IEC320-C8 power plug (without FG), this green adapter series supports an input voltage range of 80VAC to 264VAC. It offers a range of output voltages from 5VDC to 48VDC, making it suitable for powering various miniature medical devices.
The GSM18B is engineered to meet international medical standards (2 x MOPP), with an ultra-low leakage current (<50μA), ensuring safety for devices in direct contact with patients. With an efficiency of up to 88% and a no-load power consumption of less than 0.1W, it meets energy regulations including USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and Code of Conduct (CoC) Version 5. These energy-saving features are effective in both active and standby modes.
Encased in a 94V-0 flame-retardant plastic housing, the GSM18B provides double insulation to prevent electrical shock, ensuring safe operation. Additionally, it is certified to meet international medical safety standards, making it an ideal choice for medical applications requiring a compact and energy-efficient power solution.

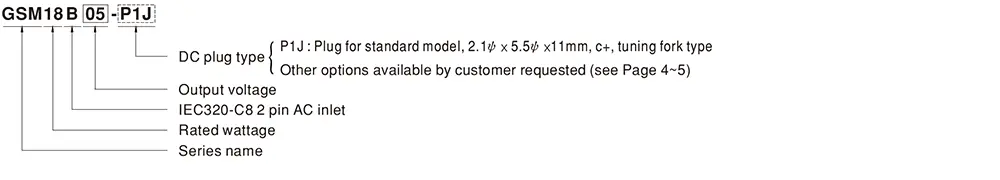

Mean Well Medical Desktop Adaptor GSM18B Series Model Encoding
Mean Well Medical Desktop Adaptor GSM18B Series Data Sheet Download
Specification
| ORDER NO. | GSM18B05-P1J | GSM18B07-P1J | GSM18B09-P1J | GSM18B12-P1J | GSM18B15-P1J | GSM18B18-P1J | GSM18B24-P1J | GSM18B48-P1J | |||
|
OUTPUT |
SAFETY MODEL NO. | GSM18B05 | GSM18B07 | GSM18B09 | GSM18B12 | GSM18B15 | GSM18B18 | GSM18B24 | GSM18B48 | ||
| DC VOLTAGE Note.2 | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |||
| RATED CURRENT | 3A | 2A | 2A | 1.5A | 1.2A | 1A | 0.75A | 0.375A | |||
| CURRENT RANGE | 0 ~ 3A | 0 ~ 2A | 0 ~ 2A | 0 ~ 1.5A | 0 ~ 1.2A | 0 ~ 1A | 0 ~ 0.75A | 0 ~ 0.375A | |||
| RATED POWER (max.) | 15W | 15W | 18W | 18W | 18W | 18W | 18W | 18W | |||
| RIPPLE & NOISE (max.) Note.3 | 60mVp-p | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 240mVp-p | |||
| VOLTAGE TOLERANCE Note.4 | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |||
| LINE REGULATION Note.5 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |||
| SETUP, RISE TIME Note.6 | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | ||||||||||
| HOLD UP TIME (Typ.) | 16ms / 230VAC 16ms / 115VAC at full load | ||||||||||
|
INPUT |
VOLTAGE RANGE Note.7 | 80 ~ 264VAC 113 ~ 370VDC | |||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
| EFFICIENCY (Typ.) | 80% | 83% | 84% | 85% | 85.5% | 86% | 87% | 88% | |||
| AC CURRENT (Typ.) | 0.5A / 115VAC 0.25A / 230VAC | ||||||||||
| INRUSH CURRENT (Typ.) | 55A / 230VAC 30A / 115VAC | ||||||||||
| LEAKAGE CURRENT (max.) | Touch current < 50μA/264VAC | ||||||||||
|
PROTECTION |
OVERLOAD | 105 ~ 170% rated output power | |||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
| OVER VOLTAGE | 5.25 ~ 7.5V | 7.88 ~ 10.13V | 9.45 ~ 12.6V | 12.6 ~ 17.2V | 15.75 ~ 20.25V | 18.9 ~ 24.3V | 25.2 ~ 32.4V | 50.4 ~ 64.8V | |||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -25 ~ +60℃ (Refer to “Derating Curve”) | |||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~40℃) | ||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||
|
SAFETY & EMC (Note. 8) |
SAFETY STANDARDS |
IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1, CAN/CSA C22.2 No. 60601-1:2014+A2;
CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved |
|||||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | ||||||||
| Conducted emission | BS EN/EN55011(CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32 | Class B | |||||||||
| Radiated emission | BS EN/EN55011(CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32 | Class B | |||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||||
| Voltage flicker | BS EN/EN61000-3-3 | —– | |||||||||
|
EMC IMMUNITY |
BS EN/EN60601-1-2, BS EN/EN61204-3 | ||||||||||
| Parameter | Standard | Test Level / Note | |||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | |||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m (80MHz~2.7GHz)
Table 9, 9~28V/m (385MHz~5.78GHz) |
|||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods |
|||||||||
|
OTHERS |
MTBF | 3889.1K hrs min. Telcordia SR-332 (Bellcore); 794.6K hrs min. MIL-HDBK-217F (25℃) | |||||||||
| DIMENSION | 79*54*33mm (L*W*H) | ||||||||||
| PACKING | 205g; 60pcs / 13.3Kg / CARTON | ||||||||||
| CONNECTOR | PLUG | See page 4~5; Other type available by customer requested | |||||||||
| CABLE | See page 4~5; Other type available by customer requested | ||||||||||
Applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
