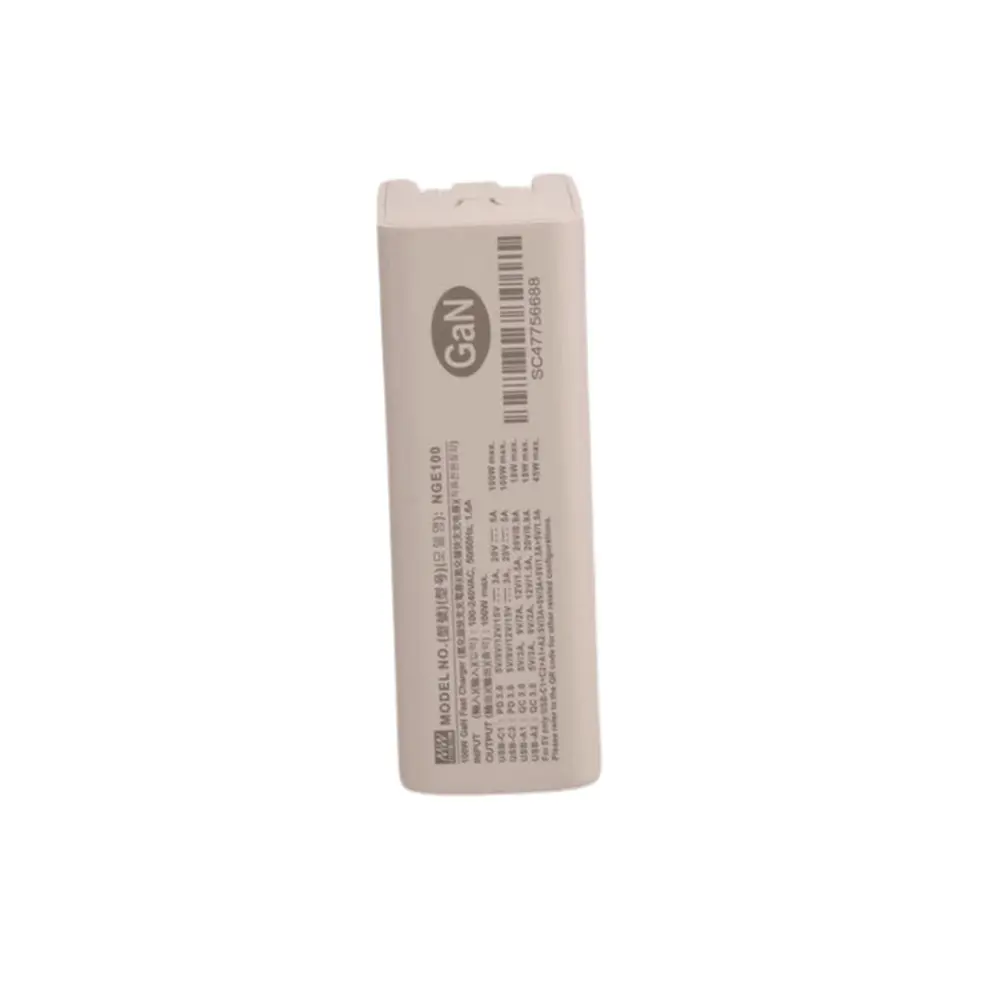

MW Mean Well Meanwell 100W 4-Port USB GaN Fast Charger NGE100 Series
Features
- One model for multi-devices
- MEAN WELL Patent Application Number:202330347779.4

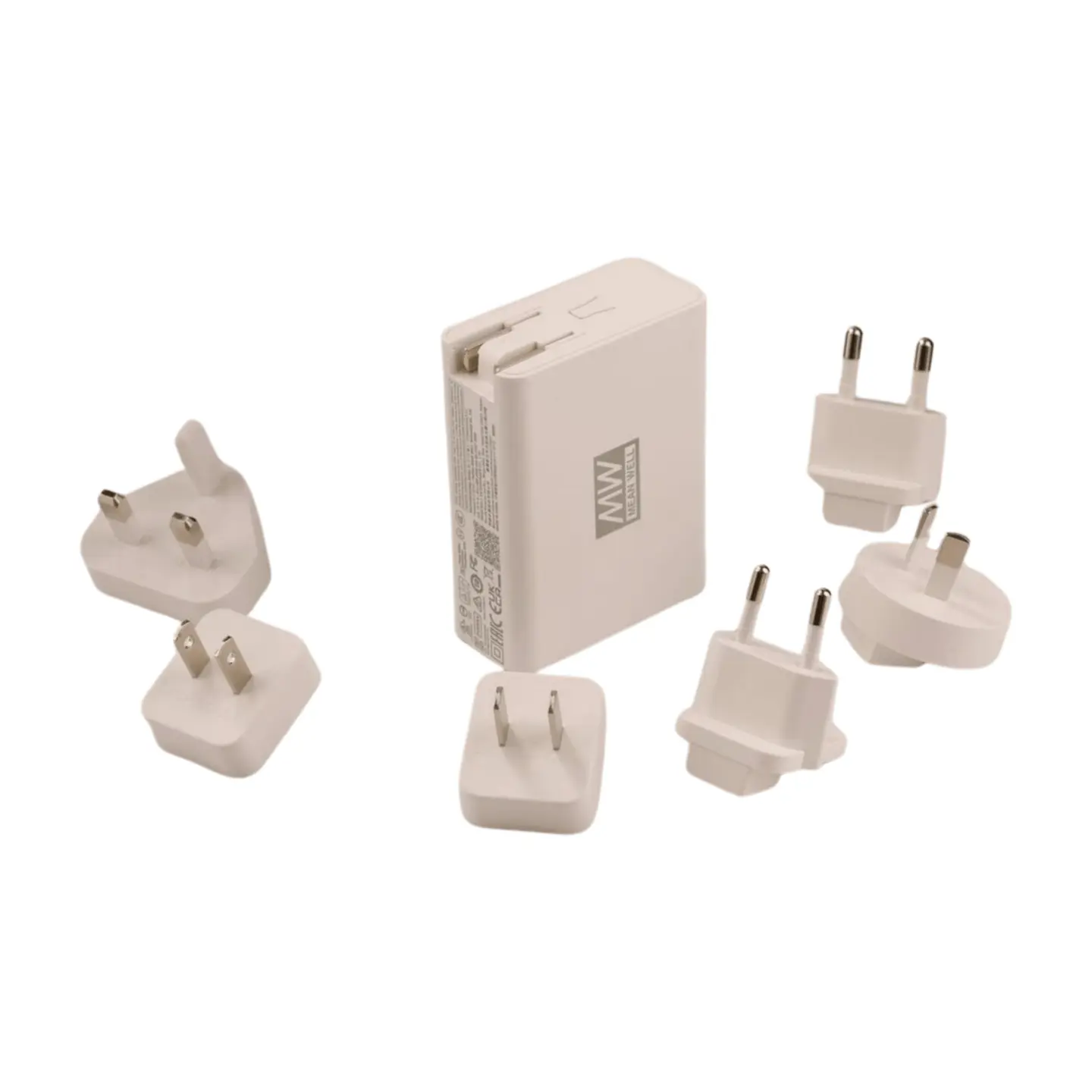

- Universal version: Interchangeable AC plug(NGE100);

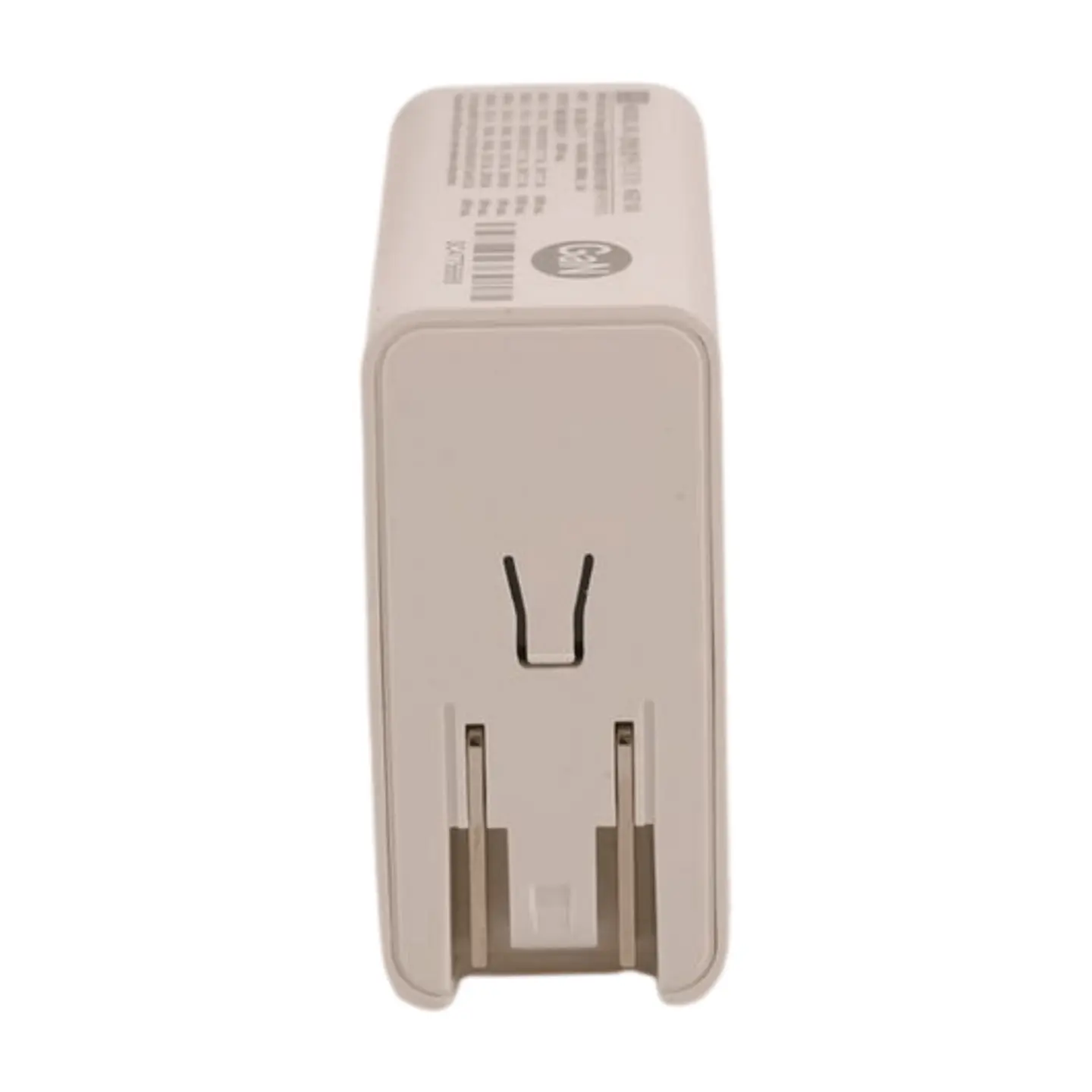

- US version: Non-interchangeable AC folding plug(NGE100U)
- Global certified
- 90~264Vac Universal AC input
- USB-2C2A, independent 4-port fast charging
- Each USB-C port offers max. 100W
- Support QC2.0.QC3.0, PD3.0
- Auto-detection 5V/9V/12V/15V/20V
- Protections: Short circuit / Overload / Over temperature
- No load power consumption <0.3W
- Energy efficiency Level VI

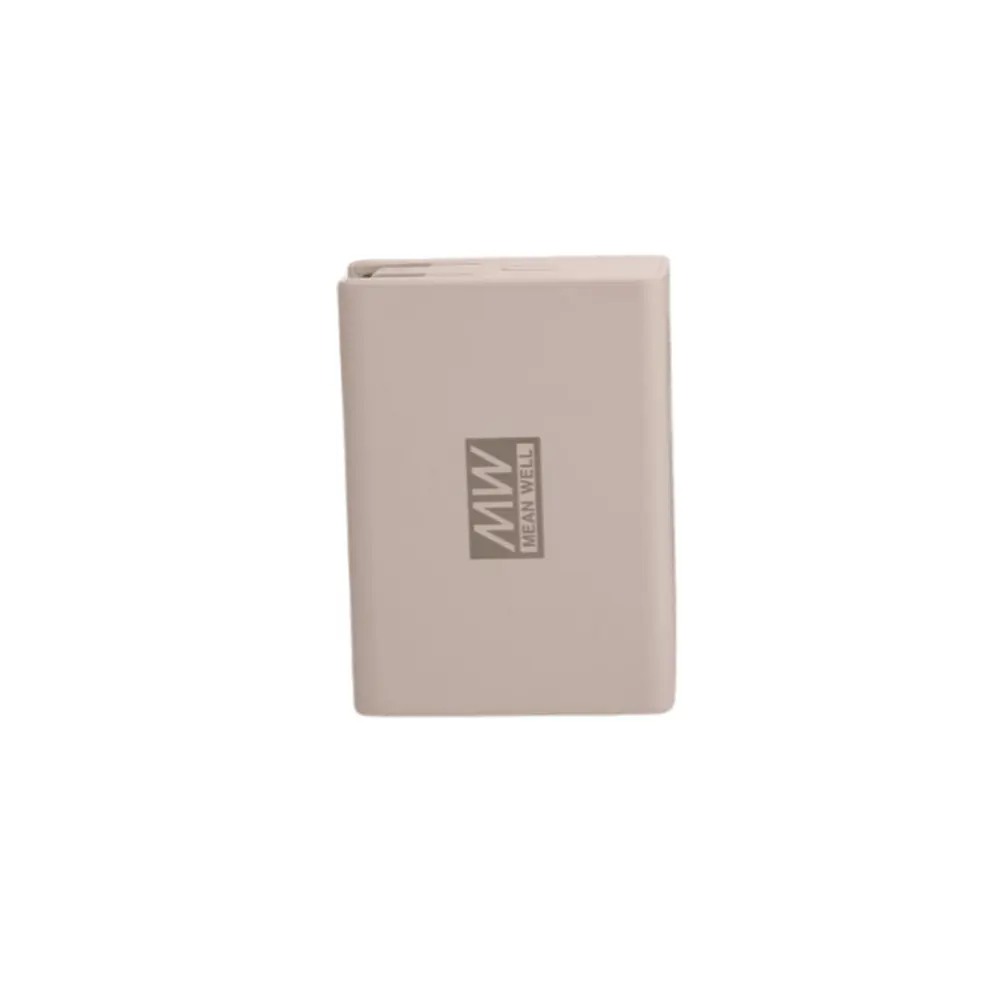

- Compact size (62*30*85.5mm)

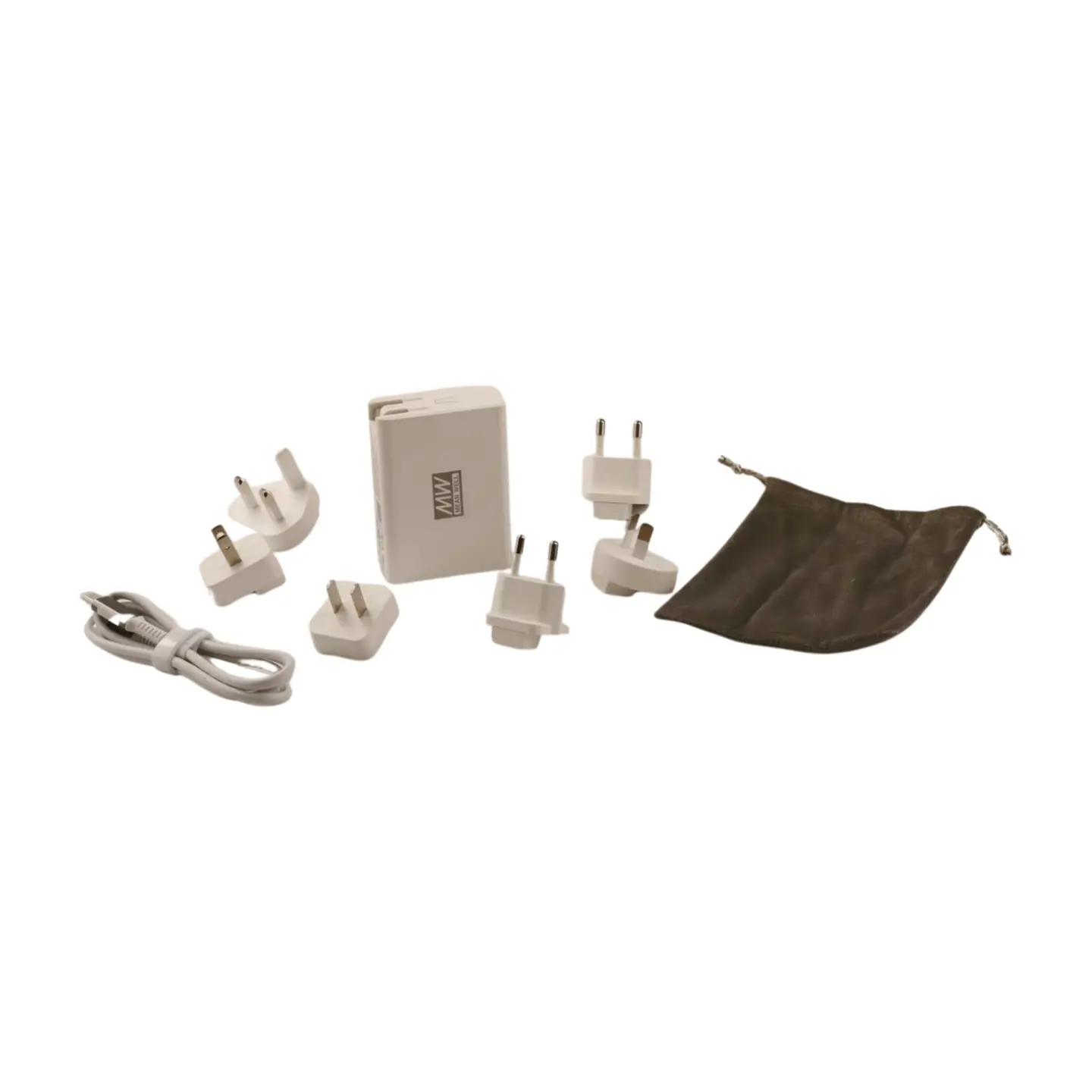

- Type-C cable with charging and data transmission included (100cm)
- 3 years warranty
Description

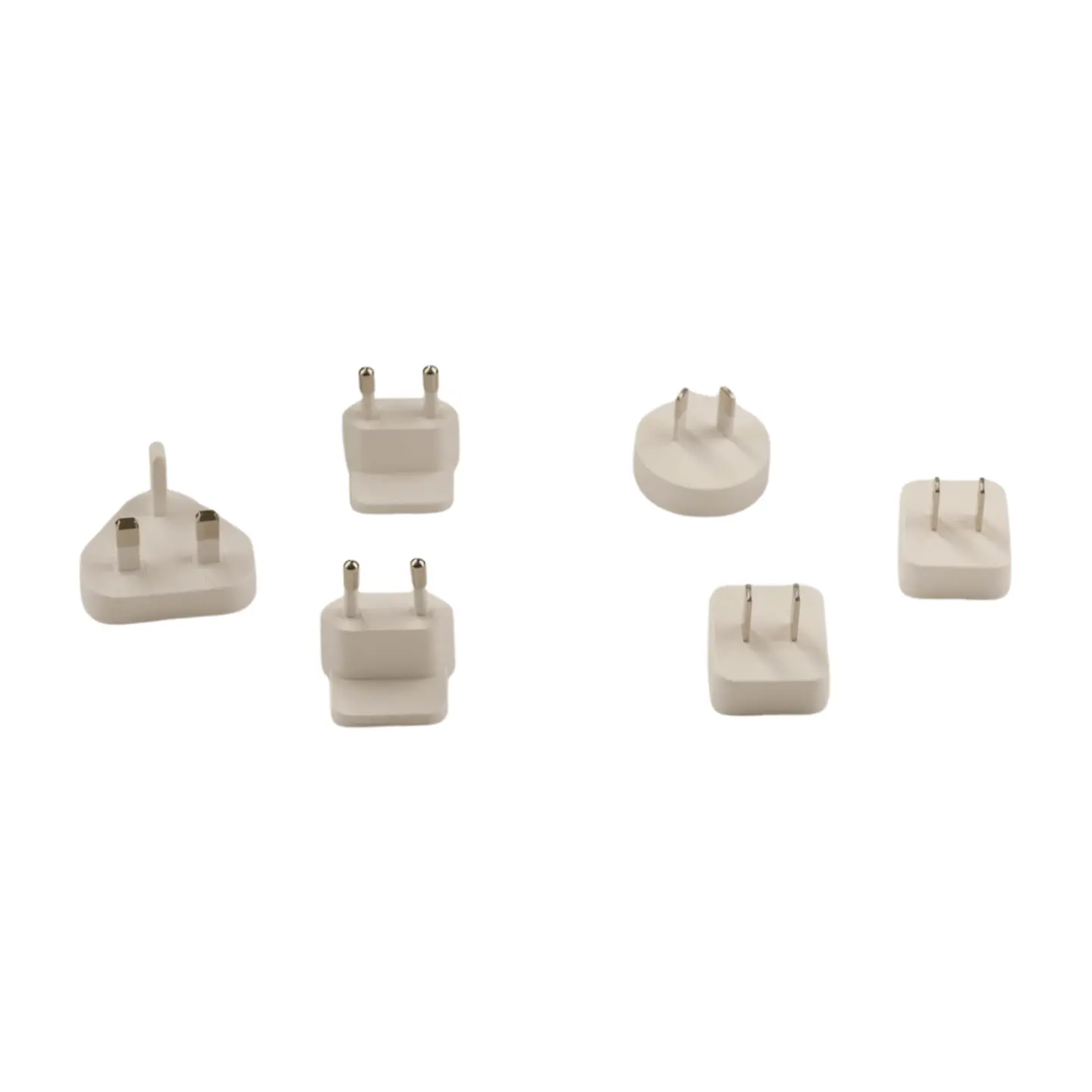

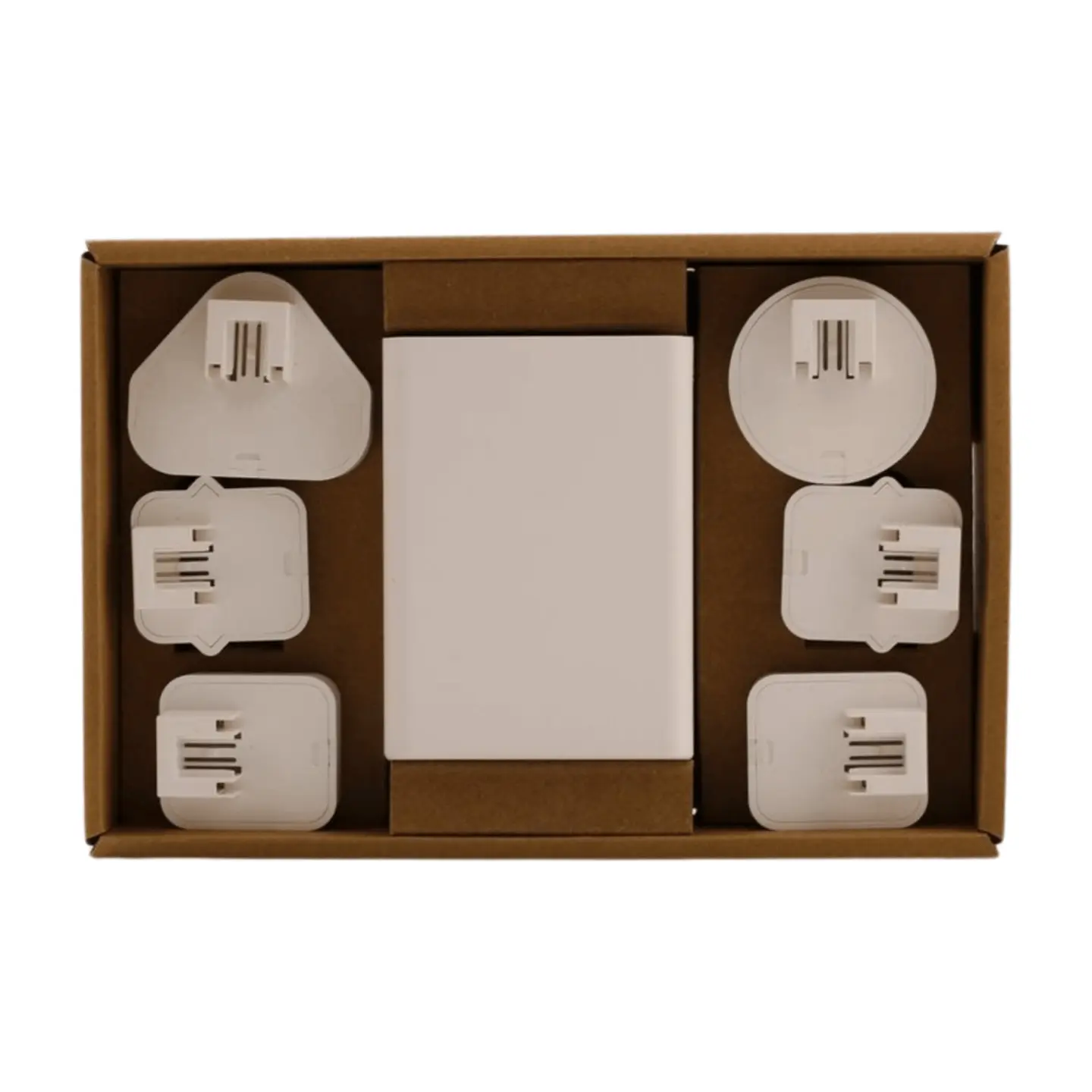

The NGE100 series is a GaN Fast Charger featuring cutting-edge gallium nitride (GaN) technology, designed for maximum efficiency and portability. This 100W universal fast charger comes in two models: the versatile NGE100, which supports seven types of AC plugs (EU, US, UK, AU, CN, KR, IN), making it the ideal choice for business travel, and the NGE100U, a GaN quick charger with a 90-degree vertically folding US plug, perfect for regions with two flat pins.
Utilizing mean well battery charger technology, the NGE100 complies with Level VI energy efficiency standards, boasting a no-load power consumption of less than 0.3W and an impressive efficiency of up to 88%. Its compact dimensions (62mm*30mm*85.5 mm) house two USB-C and two USB-A ports, allowing simultaneous charging of multiple devices. This gan multiport charger supports various fast charging protocols, including PD3.0 and QC3.0.
Upon connecting a device, the NGE100 GaN fast charger automatically recognizes and adjusts the charging voltage (5V/9V/12V/15V/20V) while efficiently allocating power. All ports support independent fast charging, with either USB-C1 or C2 capable of delivering a rapid 100W charge, making it suitable for a wide range of devices, from smartphones and tablets to laptops, gaming consoles, cameras, and AirPods.

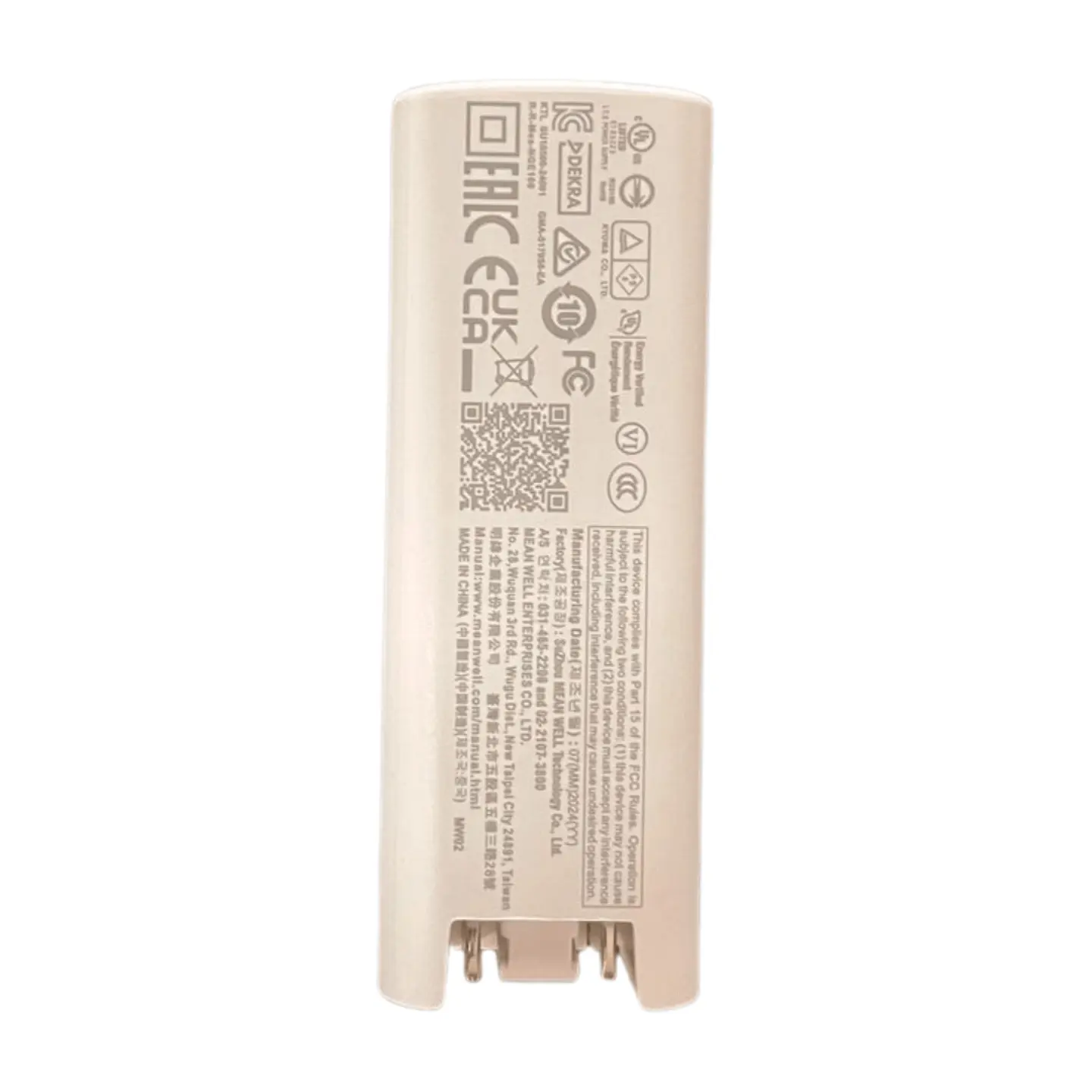

Safety is paramount with the NGE100. It features built-in short circuit, overload, and over-temperature protections, along with a 94V-0 high flame-retardant casing. It has obtained safety certifications from CB, DEKRA, UL, PSE, BSMI, CCC, ROM, KC, BIS, EAC, CE, UKCA, and FCC. With a robust 3-year warranty, the NGE100 is not only a reliable and safe gan phone charger but also one of the most powerful GaN chargers available.
Whether you need a gan tech charger or a fastest gan charger, the NGE100U 100W version is an excellent choice, ensuring you have the power you need on the go.
Mean Well 4-port USB GaN Fast Charger NGE100 Series Model Encoding
Mean Well 4-port USB GaN Fast Charger NGE100 Series Data Sheet Download
Specification
| MODEL NO. | NGE100 | ||||||||
| =Blank, U | |||||||||
|
OUTPUT |
USB C1 (100W max.) | PD3.0, 5V , 9V , 12V , 15V/3A , 20V/5A | |||||||
| USB C2 (100W max.) | PD3.0, 5V , 9V , 12V , 15V/3A , 20V/5A | ||||||||
| USB A1 (18W max. ) | QC3.0, 5V/3A , 9V/2A , 12V/1.5A , 20V/0.9A | ||||||||
| USB A2 (18W max. ) | QC3.0, 5V/3A , 9V/2A , 12V/1.5A , 20V/0.9A | ||||||||
| TOTAL POWER | 100W max. | ||||||||
| FOR 5V ONLY(45W max.)Note.2 | USB C1: 5V/3A , USB C2: 5V/3A , USB A1: 5V/1.5A , USB A2: 5V/1.5A | ||||||||
| DC VOLTAGE Note.3 | 5V | 9V | 12V | 15V | 20V | ||||
| RIPPLE & NOISE (max.) Note.4 | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE Note.5 | ±5.0% | ±5.0% | ±4.0% | ±4.0% | ±4.0% | ||||
| LINE REGULATION Note.6 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LOAD REGULATION Note.7 | ±5.0% | ±5.0% | ±4.0% | ±4.0% | ±4.0% | ||||
| SETUP, HOLD UP TIME | 1000ms,30ms/230VAC 2000ms,10ms/115VAC at USB C1 20V/5A | ||||||||
|
INPUT |
VOLTAGE RANGE Note.8 | 90 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR | PF>0.92/230VAC; PF>0.98/115VAC | ||||||||
| EFFICIENCY (Typ.) | 88% / 20V 5A | ||||||||
| AC CURRENT | 1.6A/115VAC 0.8A/230VAC | ||||||||
| INRUSH CURRENT (max.) | 65A/115VAC 95A/230VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.5mA/240VAC | ||||||||
|
PROTECTION |
OVERLOAD | 101 ~ 150% rated output power | |||||||
| Protection type : Hiccup mode,recovers automatically after fault condition is removed | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC (Note. 9) |
SAFETY STANDARDS | UL62368-1, DEKRA BS EN/EN62368-1, BSMI CNS15598-1,PSE J62368-1, CCC GB4943.1-2022,RCM AS/NZS 62368-1,
KC KC62368-1,BIS IS13252(part1):2010/IEC60950-1:2005, EAC TPTC004 approved (Please refer to next page for more details) |
|||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P :100M Ohms / 500VDC / 25 ℃/ 70% RH | ||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | ||||||
|
Conducted emission |
BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)
GB/T 9254.1-2021, KC C9832 |
Class B | |||||||
|
Radiated emission |
BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)
GB/T 9254.1-2021, KC C9832 |
Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2,GB 17625.1-2022 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ——- | |||||||
|
EMC IMMUNITY |
Parameter | Standard | Test Level /Note | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | |||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/L-N | |||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞.95% dip 0 5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
|||||||
|
OTHERS |
MTBF | 336.4Khrsmin. MIL-HDBK-217F( 25℃) 3008.3Khrsmin. Telcordia TR/SR-332 (Bellcore) (25℃) | |||||||
| DIMENSION | 62*30*85.5mm (L*W*H) | ||||||||
|
PACKING (Refer to page 7) |
MAIN BODY
POWER UNIT |
NGE100 : 362g ; 28pcs/ 13.8Kg / 1.65CUFT NGE100U: 249g ; 28pcs/ 10.6Kg / 1.65CUFT | |||||||
| AC PLUGS | Included 7 types of AC Plugs for NGE100 | ||||||||
| Type-C Cable | Included for NGE100 / NGE100U | ||||||||
Applications
- Mobile phone
- Tablet
- Laptop
- Earphone
- Game devices

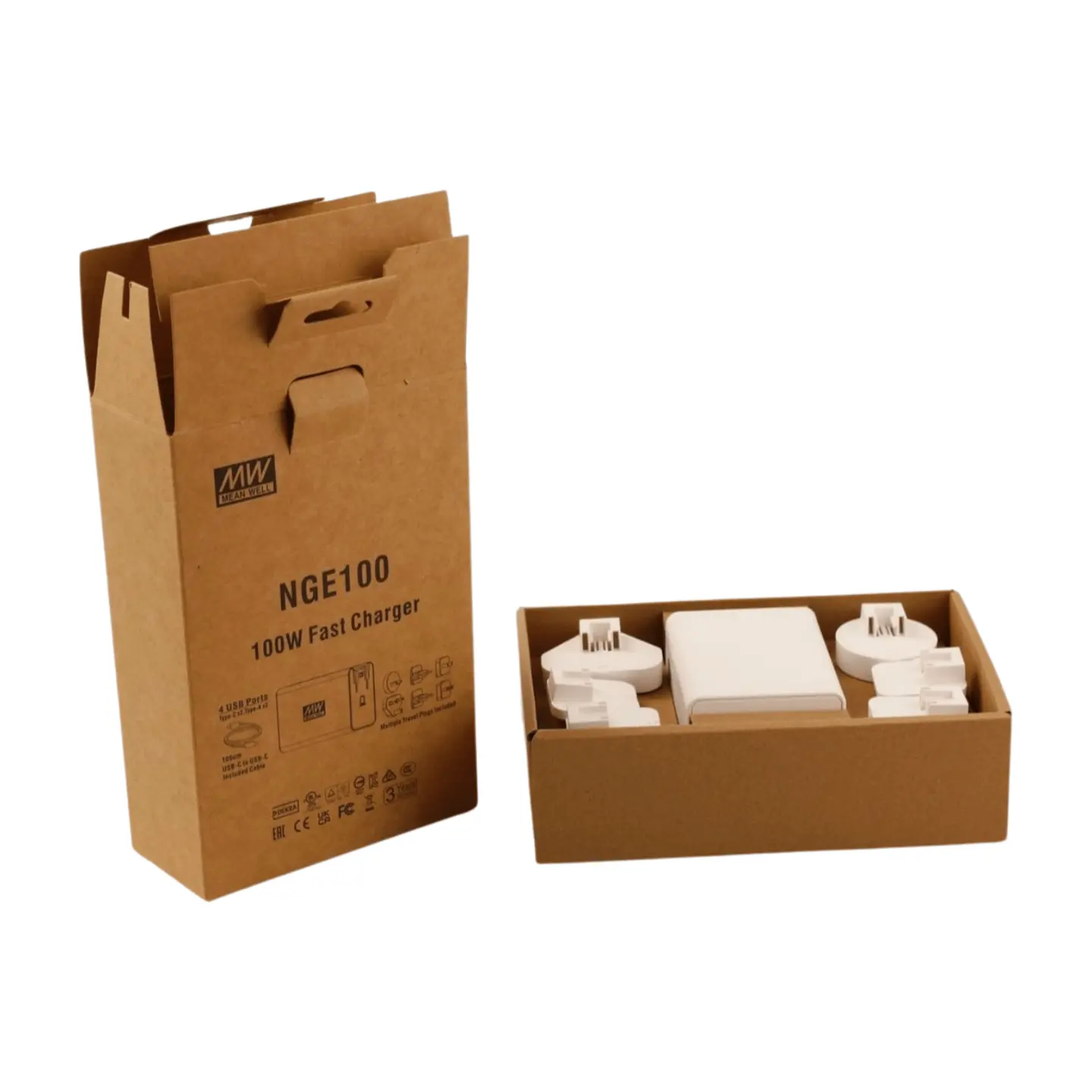

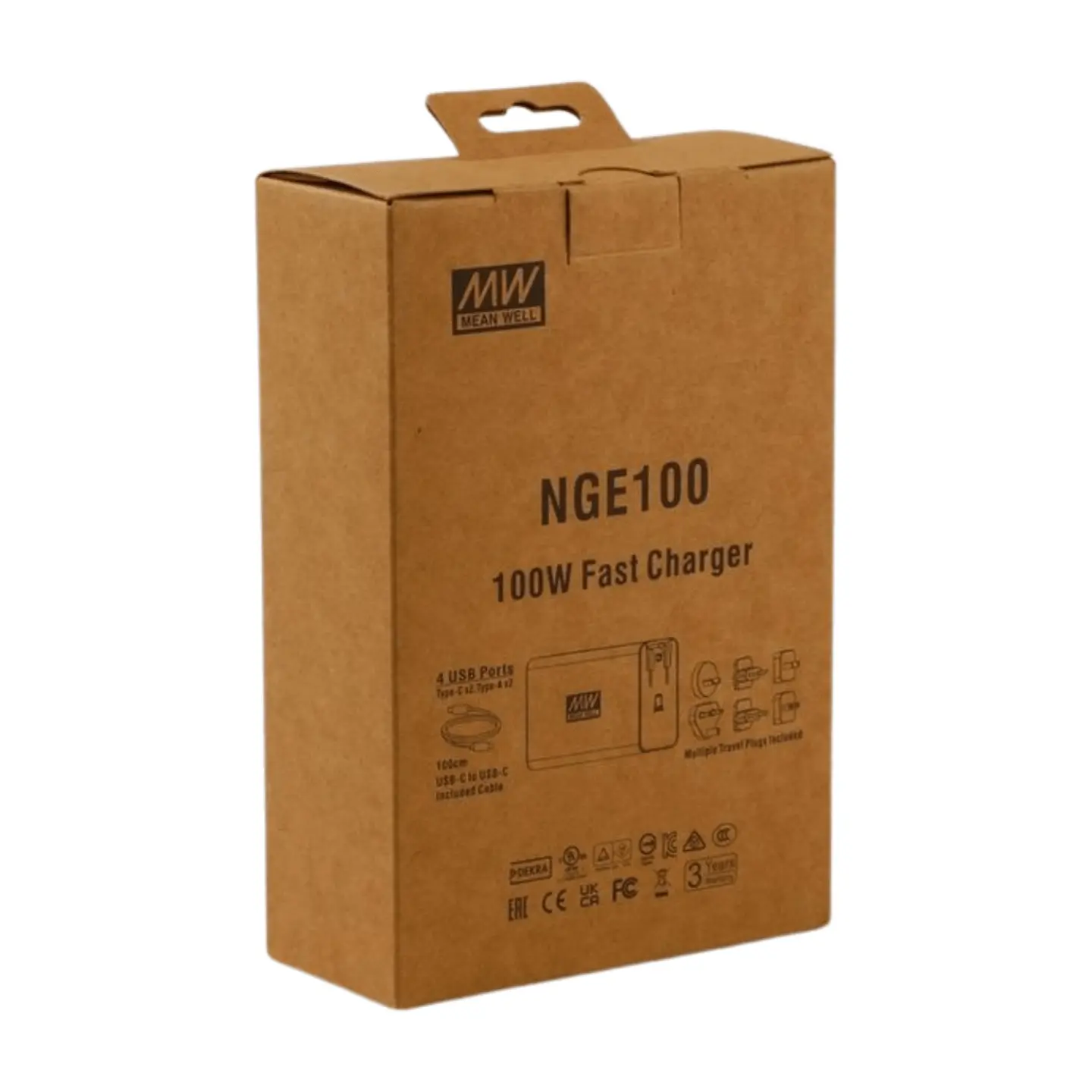

Mean Well 4-port USB GaN Fast Charger NGE100 Series Unboxing
What you see in this video is what you get for the model NGE100.
Mean Well 4-port USB GaN Fast Charger NGE100 Series Video Show
The model in this video is NGE100 from Mean Well GaN fast charger NGE100 series.
