April 30, 2022MW Mean Well Meanwell 70~100W Constant Voltage + Constant Current LED Driver ELG-100 series
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELG-100 Series Data Sheet Download
Description
ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

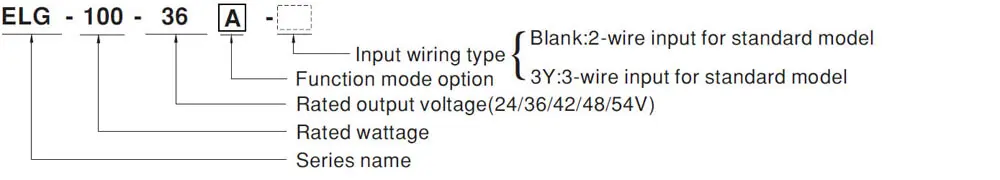

Mean Well LED Driver ELG-100 Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed. | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
Specification
| MODEL | ELG-100-24 | ELG-100-36 | ELG-100-42 | ELG-100-48 | ELG-100-54 | |
|
OUTPUT |
DC VOLTAGE | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.2 | 12 ~ 24V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 4.0A | 2.66A | 2.28A | 2A | 1.78A | |
|
RATED POWER |
200VAC ~ 305VAC | |||||
| 96W | 95.76W | 95.76W | 96W | 96.12W | ||
| 100VAC ~ 180VAC | ||||||
| 70W | 70W | 70W | 70W | 70W | ||
| RIPPLE & NOISE (max.) Note.3 | 200mVp-p | 250mVp-p | 250mVp-p | 300mVp-p | 350mVp-p | |
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||
| 21.6 ~ 26.4V | 32.4 ~ 39.6V | 37.8 ~ 46.2V | 43.2 ~ 52.8V | 48.6 ~ 59.4V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||
| 2 ~ 4A | 1.33 ~ 2.66A | 1.14 ~ 2.28A | 1 ~ 2A | 0.89 ~ 1.78A | ||
| VOLTAGE TOLERANCE Note.4 | ±3.0% | ±2.5% | ±2.5% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.6 | 1000ms, 80ms/115VAC 500ms, 100ms/230VAC | |||||
| HOLD UP TIME (Typ.) | 15ms/115VAC 10ms/230VAC | |||||
|
INPUT |
VOLTAGE RANGE Note.5 |
100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
|
POWER FACTOR |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||
| EFFICIENCY (Typ.) | 88% | 89% | 90% | 90% | 91% | |
| AC CURRENT | 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
|||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type | |||||
|
PROTECTION |
OVER CURRENT |
95 ~ 108% | ||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
28 ~ 34V | 41 ~ 48V | 47 ~ 54V | 54 ~ 62V | 62 ~ 72V | |
| Shut down output voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B
only); GB19510.1, GB19510.14; IP65 or IP67;KC61347-1,KC61347-2-13 approved |
||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 | |||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);
EAC TP TC 020; KC KN15,KN61547 |
|||||
|
OTHERS |
MTBF | 978.2K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 199*63*35.5mm (L*W*H) | |||||
| PACKING | 0.85kg; 16pcs/14.2kg/0.72CUFT | |||||
Application
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
