May 4, 2022100W Constant Current Mode LED Driver HBG-100P series
Features
‧Constant Current mode output
‧Circular shape PCB type design
‧Built-in active PFC function
‧Function options: output adjustable via potentiometer;
3 in 1 dimming; DALI
‧Typical lifetime>50000 hours
‧5 years warranty
Data Sheet Download
Description
HBG-100P series is a 100W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-100P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

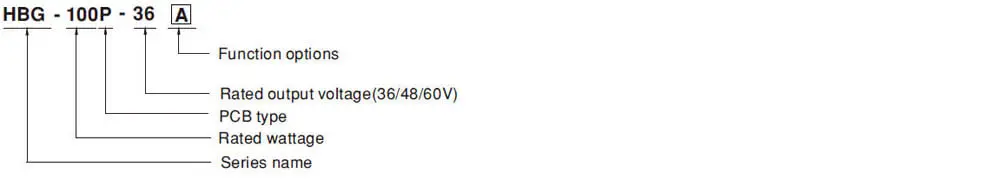

Model Encoding
| Type | Function | Note |
| A | Io adjustable through built-in potentiometer. | In Stock |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| DA | DALI control technology. | In Stock |
Specification
| MODEL | HBG-100P-36 | HBG-100P-48 | HBG-100P-60 | |
|
OUTPUT |
RATED CURRENT | 2.7A | 2A | 1.6A |
| RATED POWER | 97.2W | 96W | 96W | |
| CONSTANT CURRENT REGION Note.2 | 21.6 ~ 36V | 28.8 ~ 48V | 36 ~ 60V | |
| OPEN CIRCUIT VOLTAGE (max.) | 37V | 49V | 62V | |
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||
| 1.62 ~ 2.7A | 1.2 ~ 2A | 1.0 ~ 1.6A | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |||
| CURRENT TOLERANCE | ±5.0% | |||
| SET UP TIME Note.4 | 2000ms / 115VAC 500ms / 230VAC | |||
|
INPUT |
VOLTAGE RANGE Note.3 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 20% (@load≧60%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) Note.5 | 91% | 91% | 91.5% | |
| AC CURRENT | 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 60A (twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B/DA-Type A-Type please refer to Note. 7 | |||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||
| Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 41 ~ 49V | 54 ~ 63V | 65 ~ 75V | |
| Shut down o/p voltage, re-power on to recovery | ||||
| OVER TEMPERATURE Note.11 | Shut down o/p voltage, re-power on to recovery | |||
|
ENVIRONMENT |
WORKING TEMP. | Ta=-40 ~ +45℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750, CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, GB19510.1, GB19510.14, EAC TP TC 004 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%); BS EN/EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020 | |||
|
OTHERS |
MTBF | 346.8Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | Refer to mechanical specification | |||
| PACKING | 0.3Kg; 45pcs/14.5Kg/1.60CUFT | |||
Application
‧LED bay lighting
‧LED down lighting
‧LED spot lighting
‧LED mining lighting
‧LED stage lighting
