May 4, 2022240W Constant Voltage + Constant Current LED Driver HBG-240 series
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with class I design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24Vand 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

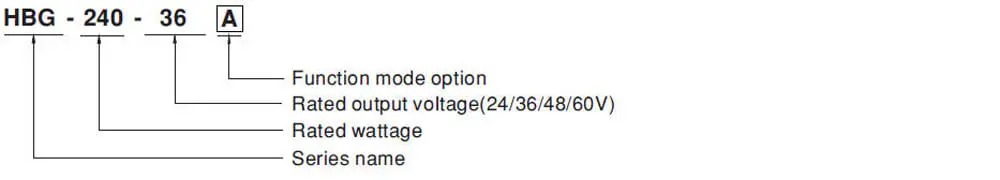

Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer with 3 in 1 dimming function | In Stock |
| DA | IP67 | DALI control technology. | In Stock |
Specification
| MODEL | HBG-240-24 | HBG-240-36 | HBG-240-48 | HBG-240-60 | ||
|
OUTPUT |
DC VOLTAGE | 24V | 36V | 48V | 60V | |
| CONSTANT CURRENT REGION Note.2 | 14.4 ~ 24V | 21.6 ~ 36V | 28.8 ~ 48V | 36 ~ 60V | ||
| CONSTANT CURRENT REGION
(for DA Type only) |
16.8 ~ 24V |
25.2 ~ 36V |
33.6 ~ 48V |
42 ~ 60V |
||
| RATED CURRENT | 10A | 6.7A | 5A | 4.0A | ||
| RATED POWER | Note.5 | 240W | 240W | 240W | 240W | |
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type (via built-in potentiometer) | |||||
| 6 ~ 10A | 4.0 ~ 6.7A | 3 ~ 5A | 2.4 ~ 4.0A | |||
| VOLTAGE TOLERANCE Note.4 | ±2.0% | |||||
| LINE REGULATION | ±0.5% | |||||
| LOAD REGULATION | ±0.5% | |||||
| SETUP, RISE TIME | Note.6 | 500ms,120ms /230VAC 2500ms,120ms /115VAC | ||||
| HOLD UP TIME (Typ.) | 15ms /115VAC, 230VAC | |||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
|
POWER FACTOR |
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@load≧60%/115VC,230VAC; @load≧80%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||||
| EFFICIENCY (Typ.) | Note.7 | 92.5% | 92.5% | 93% | 93.5% | |
| AC CURRENT (Typ.) | 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 75A (twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A
CIRCUIT BREAKER |
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.9 | |||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
27 ~ 34V | 43 ~ 52V | 52 ~ 63V | 62 ~ 85V | ||
| Shut down and latch off o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +75℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+75℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved | ||||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION |
Note.9 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity: Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |||||
|
OTHERS |
MTBF | 663.8K hrs min. Telcordia SR-332 (Bellcore); 190.7Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | ψ191.5mm *69mm (D * H) | |||||
| PACKING | 2.1Kg; 8pcs/18.3Kg/2.09CUFT | |||||
Application
- LED bay lighting
- LED stage lighting
- LED spot lighting
