MW Mean Well Meanwell 240W Constant Voltage + Constant Current LED Driver HBG-240P series
Features
- Constant Voltage + Constant Current mode output
- Circular shape PCB type design
- Built-in active PFC function
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver HBG-240P Series Data Sheet Download
Description
HBG-240P series is a 240W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-240P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

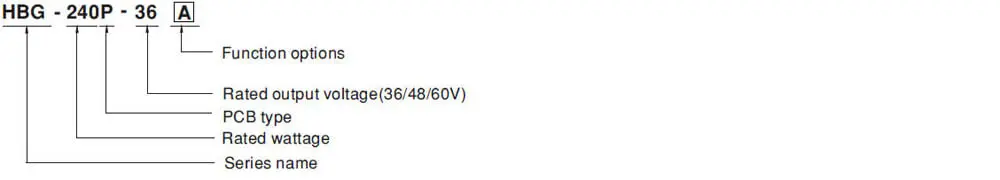

Mean Well LED Driver HBG-240P Series Model Encoding
| Type | Function | Note |
| A | Io adjustable through built-in potentiometer. | In Stock |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
Specification
| MODEL | HBG-240P-36 | HBG-240P-48 | HBG-240P-60 | |
|
OUTPUT |
DC VOLTAGE | 36V | 48V | 60V |
| CONSTANT CURRENT REGION Note.2 | 21.6 ~ 36V | 28.8 ~ 48V | 36 ~ 60V | |
| RATED CURRENT | 6.7A | 5A | 4.0A | |
| RATED POWER Note.5 | 241.2W | 240W | 240W | |
| RIPPLE & NOISE (max.) Note.3 | 250mVp-p | 250mVp-p | 350mVp-p | |
|
CURRENT ADJ. RANGE |
Adjustable for A-Type only (via built-in potentiometer) | |||
| 4.0 ~ 6.7A | 3 ~ 5A | 2.4 ~ 4.0A | ||
| VOLTAGE TOLERANCE Note.4 | ±2.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| SETUP, RISE TIME Note.6 | 2500ms, 120ms / 115VAC 500ms, 120ms / 230VAC | |||
| HOLD UP TIME (Typ.) | 15ms/115VAC,230VAC | |||
|
INPUT |
VOLTAGE RANGE Note.5 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
|
POWER FACTOR |
PF≧0.98/115VAC, PF≧0.94/230VAC, PF≧0.9/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@load≧60%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) | 92.5% | 93% | 93.5% | |
| AC CURRENT | 2.8A / 115VAC 1.4A / 230VAC 1.2A / 277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 75A (twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B-Type A-Type please refer to Note.8 | |||
|
PROTECTION |
OVER CURRENT |
95 ~ 108% | ||
| Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |||
|
OVER VOLTAGE |
43 ~ 52V | 52 ~ 63V | 62 ~ 85V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE Note.12 | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
ENVIRONMENT |
WORKING TEMP. | Ta=-40 ~ +45℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750, CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, GB19510.1, GB19510.14,
EAC TP TC 004 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧75%); BS EN/EN61000-3-3, GB17743, GB17625.1, EAC TP TC 020 | |||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity: Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020 | |||
|
OTHERS |
MTBF | 175Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | Refer to mechanical specification | |||
| PACKING | 0.62Kg; 20pcs/13.4Kg/1.11CUFT | |||
Application
- LED high/low bay lighting
- LED canopy lighting
- LED stage lighting
- LED spot lighting
- Outdoor architectural lighting system
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
