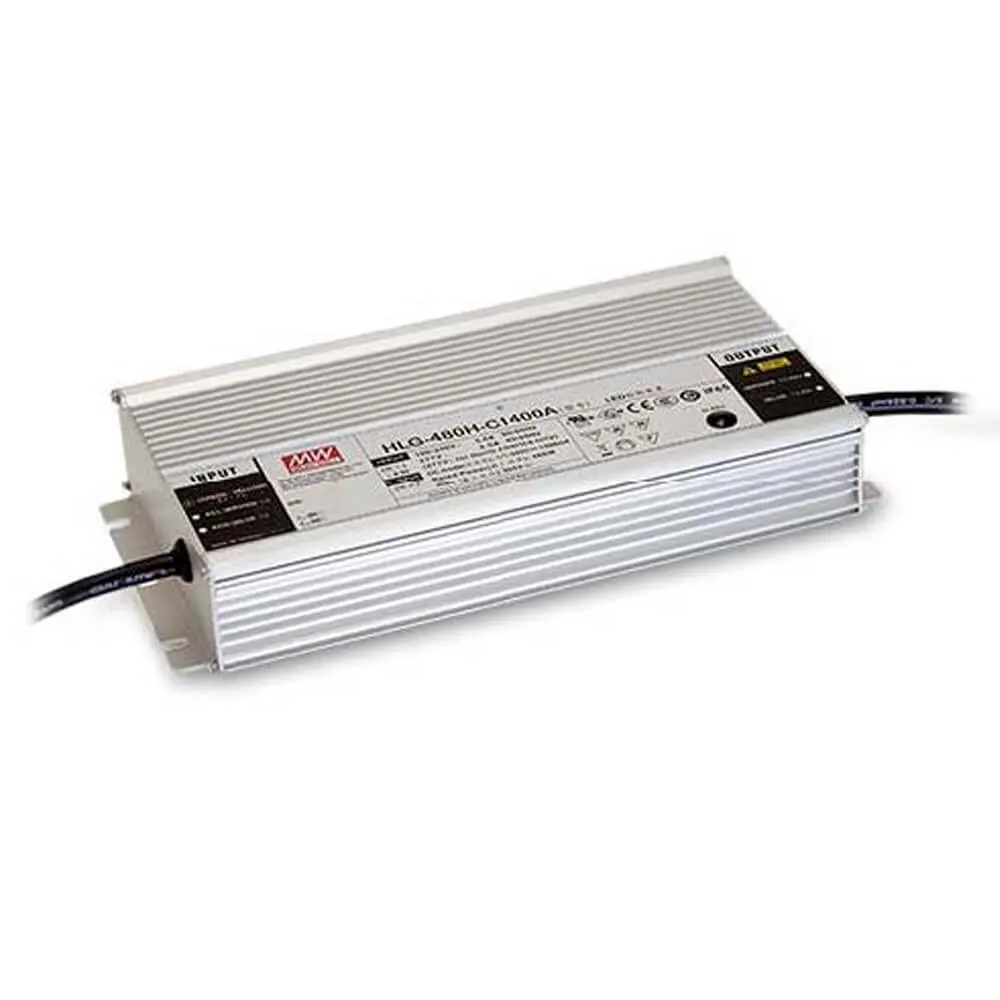

May 21, 2022480W Constant Current Mode LED Driver HLG-480H-C series
Features
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- Environment-adaptive driving capability
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off,isolated design); Smart timer dimming; Low temperature light-on; Junction box
- Typical lifetime>62000 hours (Note.7)
- 7 years warranty
Data Sheet Download
Description
HLG-480H-C series is a 480W LED AC/DC driver featuring the constant current mode and high voltage output. HLG-480H-C operates from 90 305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HLG-480H-C is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for LED lighting system.

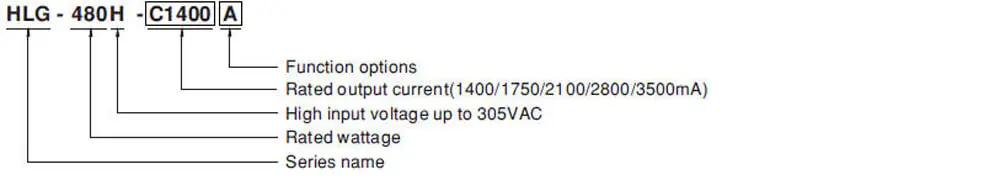

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. And environment adaptiveness. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptiveness. | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. And environment adaptiveness. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. And environment adaptiveness. | In Stock |
Specification
| MODEL | HLG-480H-C1400 | HLG-480H-C1750 | HLG-480H-C2100 | HLG-480H-C2800 | HLG-480H-C3500 | ||
|
OUTPUT |
RATED CURRENT | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA | |
| RATED POWER | 480W | 480W | 481W | 479W | 480W | ||
| CONSTANT CURRENT REGION Note.2 | 171 ~ 343V | 137~274V | 114 ~ 229V | 85 ~ 171V | 68 ~ 137V | ||
| OPEN CIRCUIT VOLTAGE (max.) | 420V | 340V | 280V | 210V | 170V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 700~1400mA | 875~1750mA | 1050~2100mA | 1400~2800mA | 1750~3500mA | |||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| SET UP TIME | Note.4 | 500ms/115VAC,230VAC | |||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧40% /115VAC, 230VAC, 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||
| EFFICIENCY (Typ.) | 95% | 95% | 95% | 95% | 95% | ||
| AC CURRENT (Typ.) | 5A / 115VAC 2.45A / 230VAC 2A / 277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
432 ~ 473V | 345 ~ 382V | 289 ~ 322V | 215 ~ 246V | 173 ~ 197V | ||
| Shut down output voltage, re-power on to recovery | |||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB17743, GB17625.1, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||
|
OTHERS |
MTBF | 421.1K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 262*125*43.8mm (L*W*H) | ||||||
| PACKING | 2.8Kg; 4pcs/12.2Kg/0.55CUFT | ||||||
Application
- LED Harbour
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type “HL” for use in ClassⅠ,Division 2 hazardous(Classified) location
