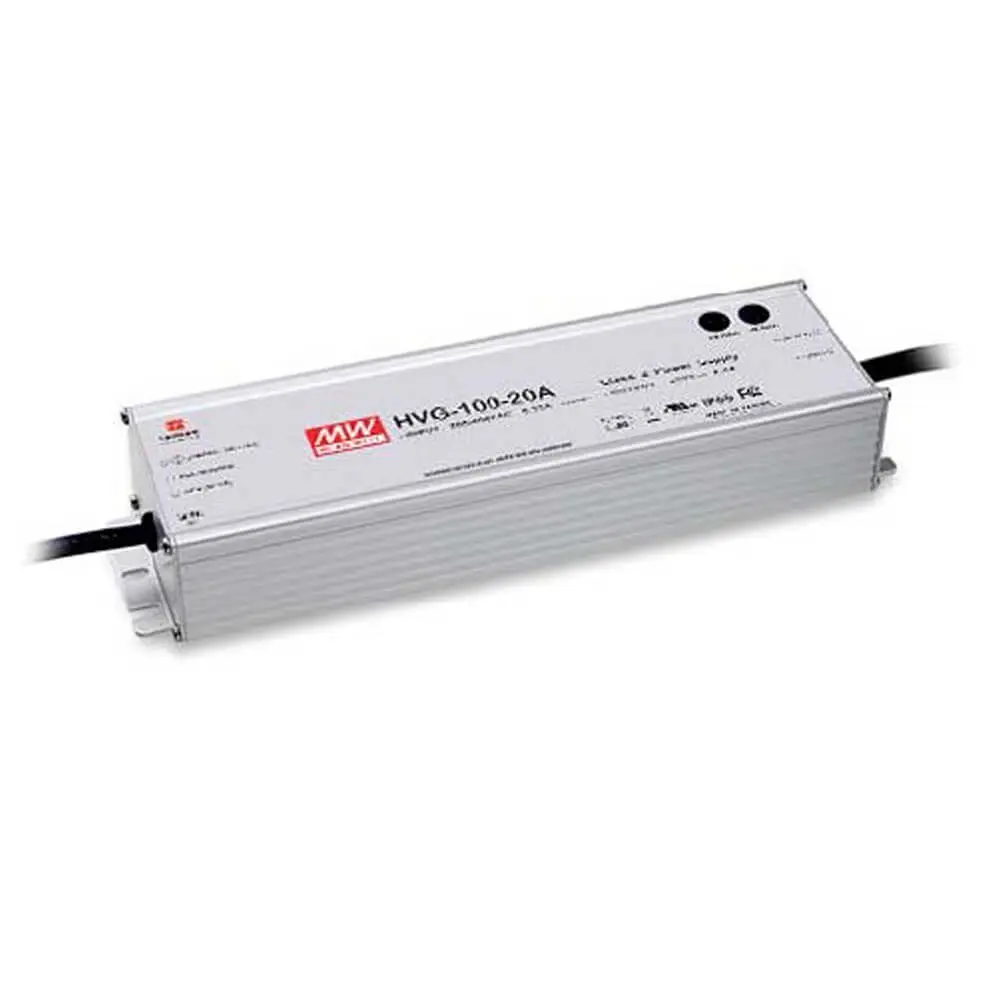

May 21, 2022100W Constant Voltage + Constant Current LED Driver HVG-100 series
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- Class 2 power unit
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

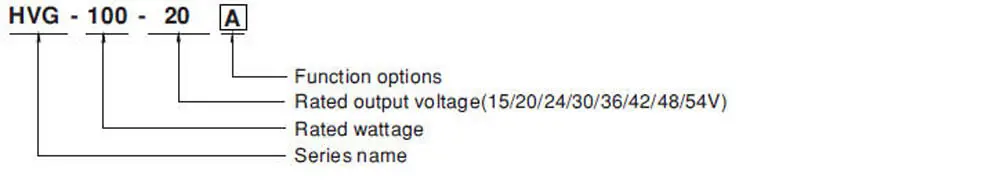

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request. | By request |
Specification
| MODEL | HVG-100-15 | HVG-100-20 | HVG-100-24 | HVG-100-30 | HVG-100-36 | HVG-100-42 | HVG-100-48 | HVG-100-54 | ||||
|
OUTPUT |
DC VOLTAGE | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||
| CONSTANT CURRENT REGION Note.4 | 9~15V | 10~20V | 12~24V | 15~30V | 18~36V | 21~42V | 24~48V | 27~54V | ||||
| RATED CURRENT | 5A | 4.8A | 4A | 3.2A | 2.65A | 2.28A | 2A | 1.77A | ||||
| RATED POWER | 75W | 96W | 96W | 96W | 95.4W | 95.76W | 96W | 95.58W | ||||
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||||
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||||
| 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | |||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||||
| 2.75 ~ 5A | 2.64 ~ 4.8A | 2.2 ~ 4A | 1.76 ~ 3.2A | 1.45 ~ 2.65A | 1.25 ~ 2.28A | 1.1 ~ 2A | 0.97 ~ 1.77A | |||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||
| LOAD REGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||
| SETUP, RISE TIME | Note.6 | 500ms, 80ms /230VAC, 347VAC, 480VAC | ||||||||||
| HOLD UP TIME (Typ.) | 30ms/347VAC, 480VAC | |||||||||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) | |||||||||||
| EFFICIENCY (Typ.) | 89% | 90% | 91% | 91% | 90.5% | 90.5% | 91% | 91% | ||||
| AC CURRENT (Typ.) | 0.38A / 347VAC 0.28A / 480VAC | |||||||||||
| INRUSH CURRENT (Typ.) | COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC |
|||||||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||||
|
OVER VOLTAGE |
18 ~ 21V | 23 ~ 27V | 28 ~ 34V | 34 ~ 38V | 41 ~ 46V | 47 ~ 53V | 54 ~ 60V | 59 ~ 65V | ||||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved | ||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||||
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020 | |||||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||||||
|
OTHERS |
MTBF | 174.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||||
| DIMENSION | 236*68*38.8mm (L*W*H) | |||||||||||
| PACKING | 1.18Kg; 12pcs/15.2Kg/0.74CUFT | |||||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
