May 21, 2022150W Constant Voltage + Constant Current LED Driver HVG-150 series
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

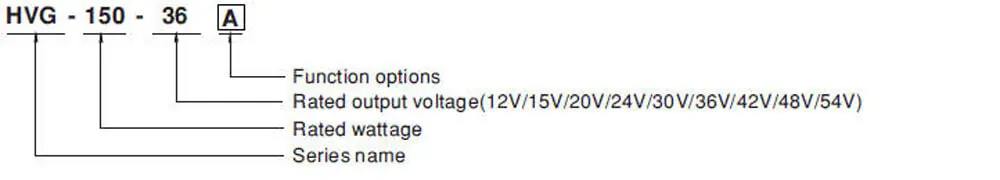

Model Encoding
Type | IP Level | Function | Note |
A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
D | IP67 | Built-in Smart timer dimming function by user request. | By request |
Specification
MODEL | HVG-150-12 | HVG-150-15 | HVG-150-20 | HVG-150-24 | HVG-150-30 | HVG-150-36 | HVG-150-42 | HVG-150-48 | HVG-150-54 | ||
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |
CONSTANT CURRENT REGION Note.4 | 7.2~12V | 8.25~15V | 11~20V | 13.2~24V | 16.5~30V | 19.8~36V | 23.1~42V | 26.4~48V | 29.7~54V | ||
RATED CURRENT | 10A | 10A | 7.5A | 6.25A | 5A | 4.17A | 3.58A | 3.13A | 2.78A | ||
RATED POWER | 120W | 150W | 150W | 150W | 150W | 150.12W | 150.36W | 150.24W | 150.12W | ||
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | ||||||||||
10.8 ~ 13.5V | 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | |||
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | ||||||||||
6 ~ 10A | 5.5 ~ 10A | 4.13 ~ 7.5A | 3.44 ~ 6.25A | 2.75 ~ 5A | 2.29 ~ 4.17A | 1.97 ~ 3.58A | 1.72 ~ 3.13A | 1.53 ~ 2.78A | |||
VOLTAGE TOLERANCE Note.3 | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
SETUP, RISE TIME Note.6 | 500ms, 80ms /230VAC, 347VAC, 480VAC | ||||||||||
HOLD UP TIME (Typ.) | 18ms/347VAC, 480VAC | ||||||||||
INPUT |
VOLTAGE RANGE Note.5 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||||||
FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||||
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) | ||||||||||
EFFICIENCY (Typ.) | 87% | 89% | 90.5% | 91% | 91% | 91% | 91% | 91.5% | 91.5% | ||
AC CURRENT
(Typ.) |
347VAC | 0.45A | 0.5A | ||||||||
480VAC | 0.35A | 0.38A | |||||||||
INRUSH CURRENT (Typ.) | COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | ||||||||||
MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC |
||||||||||
LEAKAGE CURRENT | <0.75mA / 480VAC | ||||||||||
PROTECTION |
OVER CURRENT | 95 ~ 108% | |||||||||
Constant current limiting, recovers automatically after fault condition is removed | |||||||||||
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
OVER VOLTAGE |
14.4 ~ 16.8V | 18 ~ 21V | 23 ~ 27V | 28 ~ 34V | 34 ~ 38V | 41 ~ 46V | 47 ~ 53V | 54 ~ 60V | 59 ~ 65V | ||
Shut down o/p voltage with auto-recovery or re-power on to recovery | |||||||||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||||
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||||
MAX. CASE TEMP. | Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model) | ||||||||||
WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||||
STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||||
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||||||
VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||||
SAFETY & EMC |
SAFETY STANDARDS Note.7 | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved | |||||||||
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020 | ||||||||||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||||||
OTHERS |
MTBF | 158.6K hrs min. MIL-HDBK-217F (25℃) | |||||||||
DIMENSION | 245*68*38.8mm (L*W*H) | ||||||||||
PACKING | 1.24Kg; 12pcs/15.9Kg/0.78CUFT |
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
