May 22, 2022100W Constant Current Mode LED Driver HVGC-100 series
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-100 operates from 180~528VAC and offers models with different rated current, 350mA and 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

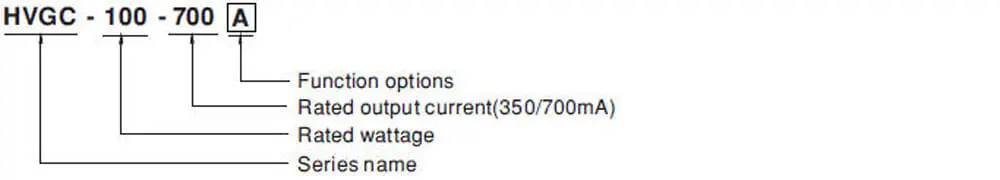

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending). | By request |
Specification
| MODEL | HVGC-100-350 | HVGC-100-700 | ||||
|
OUTPUT |
RATED CURRENT | 350mA | 700mA | |||
| RATED POWER | 99.75W | 99.4W | ||||
| CONSTANT CURRENT REGION Note.2 | 29 ~ 285V | 15 ~ 142V | ||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 210 ~ 350mA | 420 ~ 700mA | |||||
| CURRENT RIPPLE Note.5 | 5.0% max. @rated current | |||||
| CURRENT TOLERANCE | ±5.0% | |||||
| SET UP TIME | Note.4 | 500ms, 80ms /230VAC, 347VAC, 480VAC | ||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
|
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||
| EFFICIENCY (Typ.) | 91% | 91% | ||||
| AC CURRENT (Typ.) | 0.38A / 347VAC 0.28A / 480VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC |
|||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||
|
OVER VOLTAGE |
300 ~ 320V | 150 ~ 160V | ||||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved;
design refer to UL60950-1 |
||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020 | |||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||
|
OTHERS |
MTBF | 186.1K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 236*68*38.8mm (L*W*H) | |||||
| PACKING | 1.18Kg; 12pcs/15.2Kg/0.74CUFT | |||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
