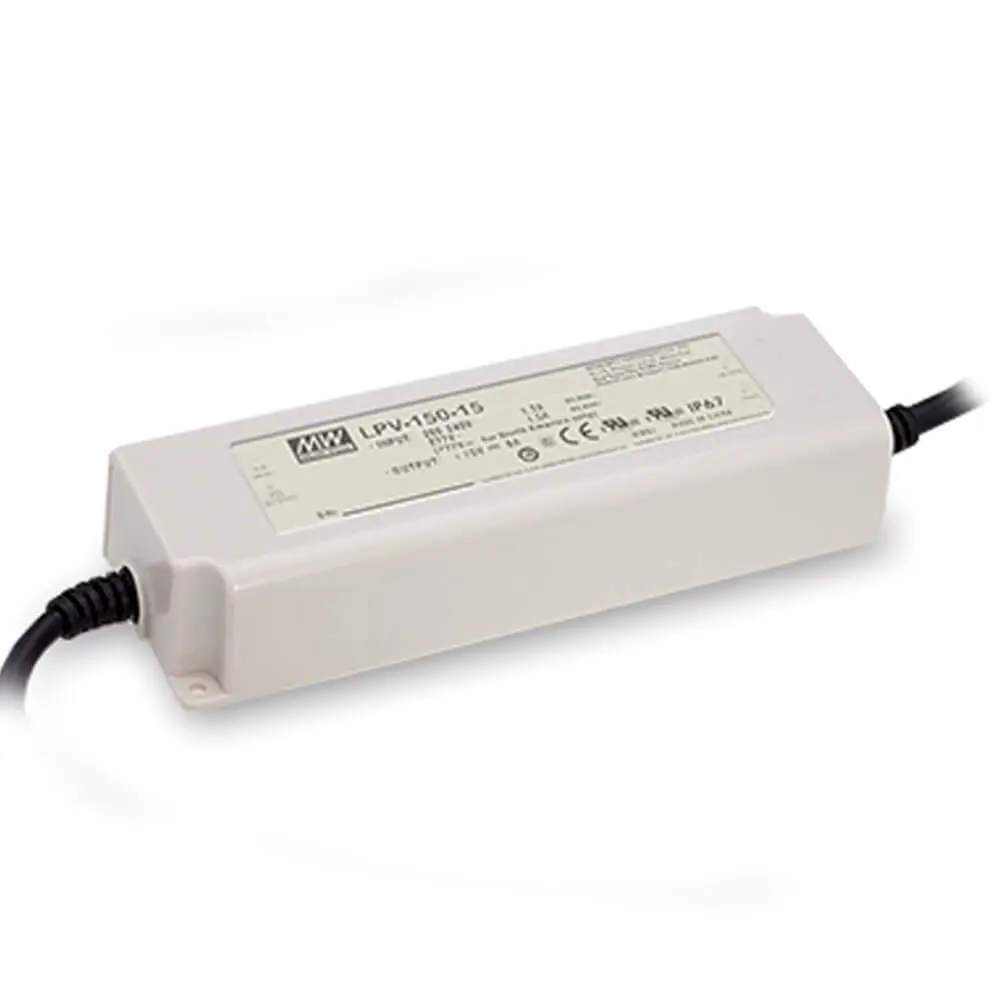

November 19, 2022150W Single Output Switching Power Supply LPV-150 series
Features
- Constant voltage design
- 90~132VAC input for LPVL-150 180~305VAC input for LPV-150
- Fully encapsulated with IP67 level
- Class II power unit, no FG
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fully isolated plastic case
- Fanless design, cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Listed in UL Sign Component Manual (SAM)
- Type “HL” for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
- 2 years warranty
LPV-150 Series Data Sheet Download
Description
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED lighting and LED moving sign applications. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.

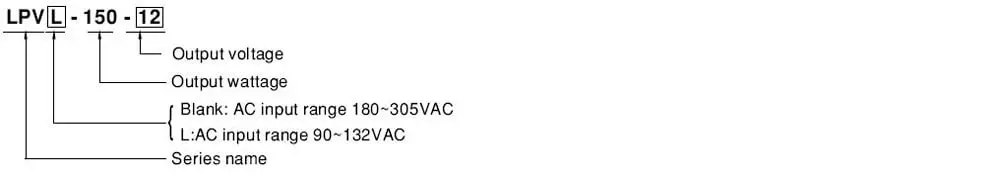

Model Encoding
Specification
MODEL | LPV -150-12 | LPV-150-15 | LPV -150-24 | LPV-150-36 | LPV-150-48 | ||
OUTPUT |
DC VOLTAGE | 12V | 15V | 24V | 36V | 48V | |
RATED CURRENT | 10A | 8A | 6.3A | 4.2A | 3.2A | ||
CURRENT RANGE | 0 ~ 10A | 0 ~ 8A | 0 ~ 6.3A | 0 ~ 4.2A | 0 ~ 3.2A | ||
RATED POWER | 120W | 120W | 151.2W | 151.2W | 153.6W | ||
RIPPLE & NOISE (max.) Note.2 | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
VOLTAGE TOLERANCE Note.3 | ±5.0% | ||||||
LINE REGULATION | ±1.0% | ||||||
LOAD REGULATION | ±2.0% | ||||||
SETUP, RISE TIME Note.6 | LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC | ||||||
HOLD UP TIME (Typ.) | LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load | ||||||
INPUT |
VOLTAGE RANGE Note.4 | LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC | |||||
FREQUENCY RANGE | 47 ~ 63Hz | ||||||
EFFICIENCY (Typ.) | 87% | 88% | 89% | 89% | 90% | ||
AC CURRENT | LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC | ||||||
INRUSH CURRENT
(Typ.) |
Blank type | COLD START 60A (twidth=900μs measured at 50% Ipeak) at 230VAC | |||||
L type | COLD START 75A (twidth=900μs measured at 50% Ipeak) at 115VAC | ||||||
MAX. No. of PSUs on 16A CIRCUIT BREAKER | Blank type | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |||||
L type | 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC | ||||||
LEAKAGE CURRENT | LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC | ||||||
PROTECTION |
OVERLOAD | 110 ~ 150% rated output power | |||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
OVER VOLTAGE | 13.5 ~ 18V | 17 ~ 25V | 27 ~ 35V | 40 ~ 49V | 52 ~ 63V | ||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
ENVIRONMENT |
WORKING TEMP. | -25 ~ +65℃ (Refer to “Derating Curve”) | |||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48) | ||||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
SAFETY & EMC |
SAFETY STANDARDS | Blank type | UL8750, CSA C22.2 No 250.13-12, UL879, CSA C22.2 No.207-M89, BIS IS15885(for LPV-150-12,24 only), EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved | ||||
L type | UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved | ||||||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
EMC EMISSION | Blank type | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A (≤80% load), BS EN/EN61000-3-3, EAC TP TC 020 | |||||
L type | Compliance to FCC part 15 | ||||||
EMC IMMUNITY | Blank type | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, light industry level, EAC TP TC 020 | |||||
L type | Design refers to IEC61000-4-2,3,4,5,6,8,11; light industry level | ||||||
OTHERS |
MTBF | 3361.2K hrs min. Telcordia SR-332 (Bellcore); 391.9Khrs min. MIL-HDBK-217F (25℃) | |||||
DIMENSION | 191*63*37.5mm (L*W*H) | ||||||
PACKING | LPV-150: 0.74Kg; 20pcs/15.8Kg/0.95CUFT; LPVL-150: 0.85Kg; 20pcs/17Kg/0.95CUFT |
