Features
‧Constant Power mode output
‧Metal housing design with functional Ground
‧Built-in active PFC function
‧Class 2 power unit
‧No load / Standby power consumption <0.5W
‧IP67 rating for indoor or outdoor installations
‧Function options: output adjustable via potentiometer
3 in 1 dimming function (Dim to off and Isolation design)
‧Typical lifetime>50000 hours
‧5 years warranty
Mean Well LED Driver XLG-50 Series Data Sheet Download
Description
The XLG‑50 Series from Mean Well is a robust 50 W AC/DC LED driver engineered for constant power output. It operates across a wide input voltage range of 90–305 VAC and achieves up to 90% efficiency. With a metal housing rated IP67, it withstands case temperatures from –40 °C to 90 °C in natural convection mode, making it ideally suited for both indoor and outdoor lighting applications.
This Mean Well LED driver XLG-50 series features built-in active PFC, true constant power mode, and class-2 power unit safety. In “no-load” or standby mode, power consumption stays below 0.5 W. An adjustable output current via potentiometer and 3‑in‑1 dimming (0–10 VDC, 10 V PWM, or resistive) give it exceptional design flexibility and dim-to-off functionality, while ensuring full isolation for safe separation of output and dimming circuits.
Mean Well guarantees long-term reliability with a service life exceeding 50,000 hours and a 5-year warranty. The XLG‑50 Series complies with the latest IEC 61347, GB 7000.1‑2015, and UL 8750 safety standards, and includes short-circuit, over-voltage, and over-temperature protections. It’s an excellent solution for demanding LED lighting projects requiring high performance and ruggedness.
There are four models available in the Mean Well LED driver XLG-50 series, each designed to meet different application needs.
🔧Mean Well LED Driver XLG‑50 Series Model Options
| Model | Description |
|---|---|
| XLG‑50‑A | Base IP67 version with potentiometer-adjustable current; ideal for general-purpose indoor/outdoor LED lighting. |
| XLG‑50‑AB | Same as “A” but equipped with pre-wired input/output cables for simplified, waterproof installation. |
| XLG‑50I‑A | India-specific version (“I”) with potentiometer-adjustable current—designed to meet local electrical requirements. |
| XLG‑50I‑AB | India-specific cable-equipped “AB” version for rugged, easy-to-install LED fixtures in outdoor/industrial settings. |
💡 Explore Other Mean Well XLG LED Driver Series
The Mean Well XLG LED driver family offers a comprehensive range of constant power solutions designed to meet diverse LED lighting needs. Besides XLG-50 series, this lineup includes the compact XLG-20 Series, versatile XLG-25 Series, and high-performance XLG-75, XLG-100, XLG-150, XLG-200, XLG-240, and XLG-320 Series. Each series delivers reliable efficiency, wide input voltage support, and advanced dimming options to suit indoor and outdoor lighting applications.
XLG-20 Series
The Mean Well XLG-20 Series is a compact 20W constant power LED driver, designed for small-scale indoor and outdoor lighting applications. It features high efficiency and multiple dimming options, perfect for energy-saving LED fixtures.
XLG-25 Series
The XLG-25 Series offers 25W constant power output with wide input voltage and excellent thermal performance. It is ideal for decorative and commercial LED lighting where reliable dimming and protection functions are required.
XLG-75 Series
The Mean Well XLG-75 Series provides 75W constant power output with advanced dimming capabilities and robust protection features. It is well-suited for medium-sized lighting systems requiring reliable performance and durability.
XLG-100 Series
The XLG-100 Series offers 100W constant power LED drivers designed for larger indoor and outdoor lighting projects. It combines high efficiency, IP67 protection, and flexible dimming control for diverse lighting environments.
XLG-150 Series
The XLG-150 Series features 150W constant power output with enhanced thermal management and full dimming support. Ideal for high-power LED installations such as street lighting and industrial luminaires.
XLG-200 Series
The XLG-200 Series delivers 200W constant power with excellent reliability and wide input voltage range. It is designed for demanding applications including outdoor floodlights and architectural lighting.
XLG-240 Series
The XLG-240 Series provides 240W of constant power, high efficiency, and IP67-rated protection. Its wide operating temperature and multiple dimming options make it suitable for large-scale commercial and outdoor LED lighting.
XLG-320 Series
The Mean Well XLG-320 Series is a high-power 320W constant power LED driver, offering robust performance and versatile dimming controls. It is optimized for industrial lighting and large outdoor LED projects requiring reliable power delivery.

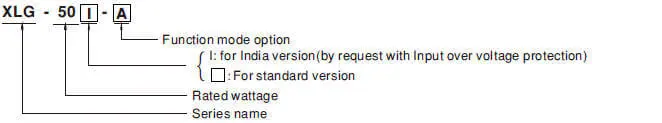

Mean Well LED Driver XLG-50 Series Model Encoding
| Type | IP Level | Function | Note |
| A | IP67 | Io adjustable through built in potentiometer. | In Stock |
| AB | IP67 | Io adjustable through built in potentiometer
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
Note: India version of XLG-50 series needs MOQ for production, please consult MEAN WELL for detail.
Specification
| MODEL | XLG-50□-□ | |||||
|
OUTPUT |
RATED CURRENT | 1A | ||||
| CONSTANT CURRENT REGION Note.2 | 22 ~54V | |||||
|
RATED POWER |
100VAC ~ 305VAC | |||||
| 50W | ||||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||
| OPEN CIRCUIT VOLTAGE (max.) | 57V | |||||
| CURRENT ADJ. RANGE | 0.53 ~ 2.1A | |||||
| SETUP, RISE TIME Note.3 | 500ms, 100ms/115VAC, 230VAC | |||||
|
INPUT |
VOLTAGE RANGE | Note.4 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||||
| EFFICIENCY (Typ.) | Note.10 | 90% | ||||
| AC CURRENT | 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A
CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF) | |||||
|
PROTECTION |
OVER POWER | 110-150% Over Power Protection, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER TEMPERATURE | Hiccup mode, recovers automatically after fault condition is removed | |||||
| INPUT OVER VOLTAGE Note.8 | 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) | |||||
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% | |||||
| STORAGE TEMP. | -40 ~ +80℃ | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.8 |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,
IS15885(Part2/Sec13)( for XLG-50I type only); NOM-058-SCFI-2017 approved |
||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
|
EMC EMISSION |
Parameter | Standard | Test Level/Note | |||
| Conducted | BS EN/EN55015(CISPR15) ,GB/T17743 | —– | ||||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T17743 | —– | ||||
| Harmonic Current | BS EN/EN61000-3-2 ,GB/T17625.1 | Class C @load≥50% | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | ||||
|
EMC IMMUNITY |
BS EN/EN61547 | |||||
| Parameter | Standard | Test Level/Note | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
||||
|
OTHERS |
MTBF | 1252.69 K hrs min. Telcordia SR-332 (Bellcore) 394.57Khrs min. | MIL-HDBK-217F (25℃) | |||
| DIMENSION | 105*63*30mm (L*W*H) | |||||
| PACKING | 0.41Kg;24pcs/ 10.5Kg/0.68CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.68CUFT for AB-type | |||||
Application
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2
- hazardous (Classified) location.
Packing Information
| Net Weight | 0.41kg/PCS, 9.84kg/carton |
| Gross weight | 10.50kg/carton |
| Quantity | 24PCS/ carton |
| Carton Size | 37cm(L)*34cm(W)*20cm(H) |
Mean Well LED Driver XLG-50 Series Video Show
*The model No. of the Mean Well XLG LED driver in this video is XLG-50-A.
