MEAN WELL HVG-480 Series 480W Constant Voltage + Constant Current LED Driver | HVG-480-24A / HVG-480-48B / HVG-480-54AB

Overview of MEAN WELL HVG-480 Series

The MEAN WELL HVG-480 Series is a 480W high-power LED driver featuring constant voltage and constant current (CV+CC) output modes, designed for industrial LED lighting systems requiring stable power delivery, flexible LED module compatibility and reliable long-term operation.

The HVG-480 Series supports a wide 180–528VAC input voltage range and provides multiple output voltage options including 24V, 30V, 36V, 42V, 48V and 54V. Each voltage platform is available with different function options including A versions with built-in Io/Vo adjustment, B versions with 3-in-1 dimming function, and AB versions combining output adjustment and dimming control.

Models such as HVG-480-24A, HVG-480-48B and HVG-480-54AB provide flexible solutions for different LED module configurations, lighting control requirements and professional high-power LED system designs.

As part of MEAN WELL’s high-power LED driver family, the HVG-480 Series is designed for applications including LED greenhouse lighting, LED stadium lighting, LED mining lighting and industrial outdoor lighting systems. The series combines wide AC input capability, constant voltage and constant current operation, and flexible function options to support various LED lighting architectures.

The HVG-480 Series features high efficiency up to 95%, built-in active PFC function and rugged metal housing design for reliable operation in demanding indoor and outdoor environments. A and AB versions provide adjustable output voltage and current through built-in potentiometer, while B and AB versions support 3-in-1 dimming including 0–10VDC, 10V PWM signal and resistance adjustment.

Designed for harsh operating conditions, the HVG-480 Series supports a wide case temperature range from -40°C to +85°C with fanless cooling design, helping improve system reliability and reduce maintenance requirements in industrial lighting installations.

Available output voltage models include:
HVG-480-24A / HVG-480-24B / HVG-480-24AB,
HVG-480-30A / HVG-480-30B / HVG-480-30AB,
HVG-480-36A / HVG-480-36B / HVG-480-36AB,
HVG-480-42A / HVG-480-42B / HVG-480-42AB,
HVG-480-48A / HVG-480-48B / HVG-480-48AB and
HVG-480-54A / HVG-480-54B / HVG-480-54AB,
providing flexible 480W LED driver solutions for different voltage, current and lighting control requirements.

Features of MEAN WELL HVG-480 Series

• 480W LED driver featuring constant voltage and constant current (CV+CC) output modes for high-power LED lighting applications
• Wide 180–528VAC input voltage range supporting global industrial lighting systems and high-voltage AC power environments
• Multiple output voltage options including 24V, 30V, 36V, 42V, 48V and 54V for different LED module configurations and system requirements
• High efficiency up to 95% with built-in active PFC function for improved energy performance and reliable operation
• Function options include A versions with built-in Io/Vo adjustment, B versions with 3-in-1 dimming, and AB versions combining adjustment and dimming control
• B and AB versions support 3-in-1 dimming including 0–10VDC, 10V PWM signal and resistance adjustment for professional lighting control systems
• Constant voltage and constant current operation suitable for direct LED module driving and flexible lighting system designs
• IP65/IP67 protection options with rugged metal housing design for indoor, outdoor and harsh industrial LED lighting environments
• Fanless design with wide case temperature range from -40℃ to +85℃ for reliable operation in demanding environments
• Available models include HVG-480-24A/B/AB, HVG-480-30A/B/AB, HVG-480-36A/B/AB, HVG-480-42A/B/AB, HVG-480-48A/B/AB and HVG-480-54A/B/AB
• HVG-480-24A/B/AB provides 24V output with 20A rated current for 480W LED lighting applications
• HVG-480-48A/B/AB provides 48V output with 10A rated current for high-power LED systems requiring higher voltage operation
• HVG-480-54A/B/AB provides 54V output with 8.9A rated current for specialized LED module configurations
• Protection functions include short circuit protection, over voltage protection, over temperature protection and constant current limiting
• Suitable for LED greenhouse lighting, stadium lighting, mining lighting and industrial outdoor LED lighting applications
• UL8750 Type HL option supports Class I, Division 2 hazardous location LED lighting applications
• 5-year manufacturer warranty for long-term reliability and professional lighting system integration

Need help selecting the right model? Compare HVG-480-24A/B/AB, HVG-480-48A/B/AB and HVG-480-54A/B/AB based on LED module voltage, current requirements, dimming method and application conditions.

Model Selection Guide for HVG-480 Series

The MEAN WELL HVG-480 Series provides a complete range of 480W constant voltage and constant current LED driver models designed for industrial lighting systems, outdoor LED applications and high-power LED module integration. Engineers, OEM lighting manufacturers and system integrators can select the suitable model based on LED module voltage, required output current, dimming method, brightness control requirements and application environment.

The HVG-480 Series offers three main function options: A versions with built-in output voltage and current adjustment, B versions with 3-in-1 dimming control, and AB versions combining adjustment and dimming functions. All available models support wide 180–528VAC input range, active PFC function and high efficiency up to 95%, providing flexible solutions for professional LED lighting system design.

24V Output Models (HVG-480-24A / HVG-480-24B / HVG-480-24AB)

The HVG-480-24 series provides 24V output with 20A rated current and 480W power capability. It is suitable for LED modules and lighting systems requiring higher current operation at lower output voltage.

Common search terms include HVG-480-24A LED driver, HVG-480-24B dimmable LED driver and 24V 480W LED driver.

A versions are suitable for applications requiring built-in voltage and current adjustment, while B and AB versions support flexible dimming control for professional LED lighting systems.

30V–42V Output Models (HVG-480-30A/B/AB, HVG-480-36A/B/AB, HVG-480-42A/B/AB)

The HVG-480-30, HVG-480-36 and HVG-480-42 models provide intermediate output voltage options for LED modules requiring different forward voltage configurations while maintaining stable 480W power delivery.

Common search terms include HVG-480-36 LED driver, HVG-480-42 constant current LED driver and 480W LED module power supply.

These models are suitable for customized LED lighting designs where output voltage matching, current regulation and dimming requirements are important factors in system development.

48V–54V Output Models (HVG-480-48A/B/AB and HVG-480-54A/B/AB)

The HVG-480-48 and HVG-480-54 models provide higher output voltage options for LED systems requiring lower output current, efficient power distribution and professional lighting control functions.

Common search queries include HVG-480-48A LED driver, HVG-480-48B LED driver, HVG-480-48AB LED driver, HVG-480-54A LED driver, HVG-480-54B LED driver and 48V 480W LED power supply.

These models are widely considered for high-power LED lighting applications including greenhouse lighting, stadium lighting, mining lighting and industrial outdoor lighting systems.

Function Option Selection

The HVG-480 Series allows engineers to select the appropriate function version according to system requirements:

• A version: Built-in potentiometer adjustment for output voltage and current settings
• B version: 3-in-1 dimming support including 0–10VDC, 10V PWM signal and resistance adjustment
• AB version: Combination of output adjustment and 3-in-1 dimming functions

Discontinued Function Options

The HVG-480-D2 smart timer dimming and programmable function version has been discontinued and is not recommended for new designs. For current projects, customers should select available HVG-480 A, B or AB versions according to output adjustment, dimming requirements and system integration needs.

System Design & Application Matching

The HVG-480 Series supports flexible LED system architectures through multiple output voltage options, constant voltage and constant current operation, adjustable output functions and dimming capabilities. Engineers typically select models based on LED module voltage, required current level, lighting control requirements, environmental conditions and system integration needs.

Need help selecting the correct HVG-480 model? Match your LED module voltage, required output current, function option (A/B/AB), dimming requirements and application environment to select the most suitable 480W LED driver for your lighting project.

Related MEAN WELL LED Driver Series

For LED lighting system design comparison and power selection planning, the following MEAN WELL LED driver series can be compared with the HVG-480 Series across different power levels, output configurations, dimming requirements and industrial lighting applications:

•
  HLG Series – High-reliability constant voltage and constant current LED drivers with IP65/IP67 protection, widely used in outdoor lighting, industrial lighting and professional LED applications.
•
  XLG Series – Constant power LED drivers supporting adjustable output current, flexible dimming functions and high-performance LED lighting system integration.
•
  HBG Series – High-power LED drivers designed for high-bay lighting, industrial lighting and applications requiring reliable constant current operation.
•
  MEAN WELL LED Driver Series – Complete LED power solution portfolio covering different wattage levels, output voltages, dimming functions and lighting application requirements.

Need help selecting between HVG-480 and other MEAN WELL LED drivers? Compare output voltage, rated power, dimming method, protection level, installation environment and LED module requirements to select the most suitable LED driver for your lighting project.

Adjustable Output, 3-in-1 Dimming, Active PFC and Protection Functions

The MEAN WELL HVG-480 Series provides flexible LED driver functions including output voltage/current adjustment, 3-in-1 dimming control, active PFC operation and comprehensive protection features for professional high-power LED lighting applications.

The HVG-480 Series offers three function versions to meet different lighting system requirements. A versions provide built-in potentiometer adjustment for output voltage and current settings, B versions support 3-in-1 dimming control, and AB versions combine both adjustment and dimming functions for advanced LED system integration.

These flexible configurations allow OEM lighting manufacturers, system integrators and engineers to select suitable models such as HVG-480-48A, HVG-480-48B and HVG-480-48AB according to LED module voltage, brightness control requirements and application environment.

Output Voltage and Current Adjustment

The A and AB versions of the HVG-480 Series provide built-in potentiometer adjustment for output voltage and current, allowing engineers to fine-tune LED driver parameters according to different LED module specifications.

This function improves compatibility with customized LED lighting systems where precise voltage and current adjustment is required during installation, commissioning or system optimization.

3-in-1 Dimming Control

The B and AB versions support flexible 3-in-1 dimming functions including 0–10VDC, 10V PWM signal and resistance adjustment.

This enables integration with professional lighting control systems, allowing brightness adjustment for applications such as greenhouse lighting, stadium lighting, industrial lighting and smart LED lighting installations.

Active PFC and Energy Performance

The HVG-480 Series integrates active power factor correction (PFC) and high efficiency up to 95%, helping improve energy utilization and reduce power losses in high-power LED lighting systems.

The wide 180–528VAC input range supports global AC power systems and provides stable operation for industrial and outdoor lighting applications.

Protection Functions and Reliable Operation

The HVG-480 Series includes comprehensive protection functions including short circuit protection, over voltage protection, over temperature protection and constant current limiting.

With rugged metal housing, IP65/IP67 protection options and a wide case temperature range from -40℃ to +85℃, the series is designed for reliable operation in demanding indoor and outdoor LED lighting environments.

Need installation and system integration details for the HVG-480 Series? Continue below for mechanical specifications, wiring diagrams, dimming connections, protection characteristics, lifetime curves and application guidelines for HVG-480-24A/B/AB, HVG-480-48A/B/AB and HVG-480-54A/B/AB configurations.

Mechanical Dimensions and Installation

The MEAN WELL HVG-480 Series features a rugged 480W LED driver housing designed for industrial lighting systems, outdoor LED applications and professional lighting equipment integration. Its compact metal enclosure, fanless cooling design and IP65/IP67 protection options provide reliable operation in demanding environments.

The mechanical design supports flexible installation for high-power LED lighting systems, while maintaining stable thermal performance under continuous operation with a wide case temperature range from -40℃ to +85℃.

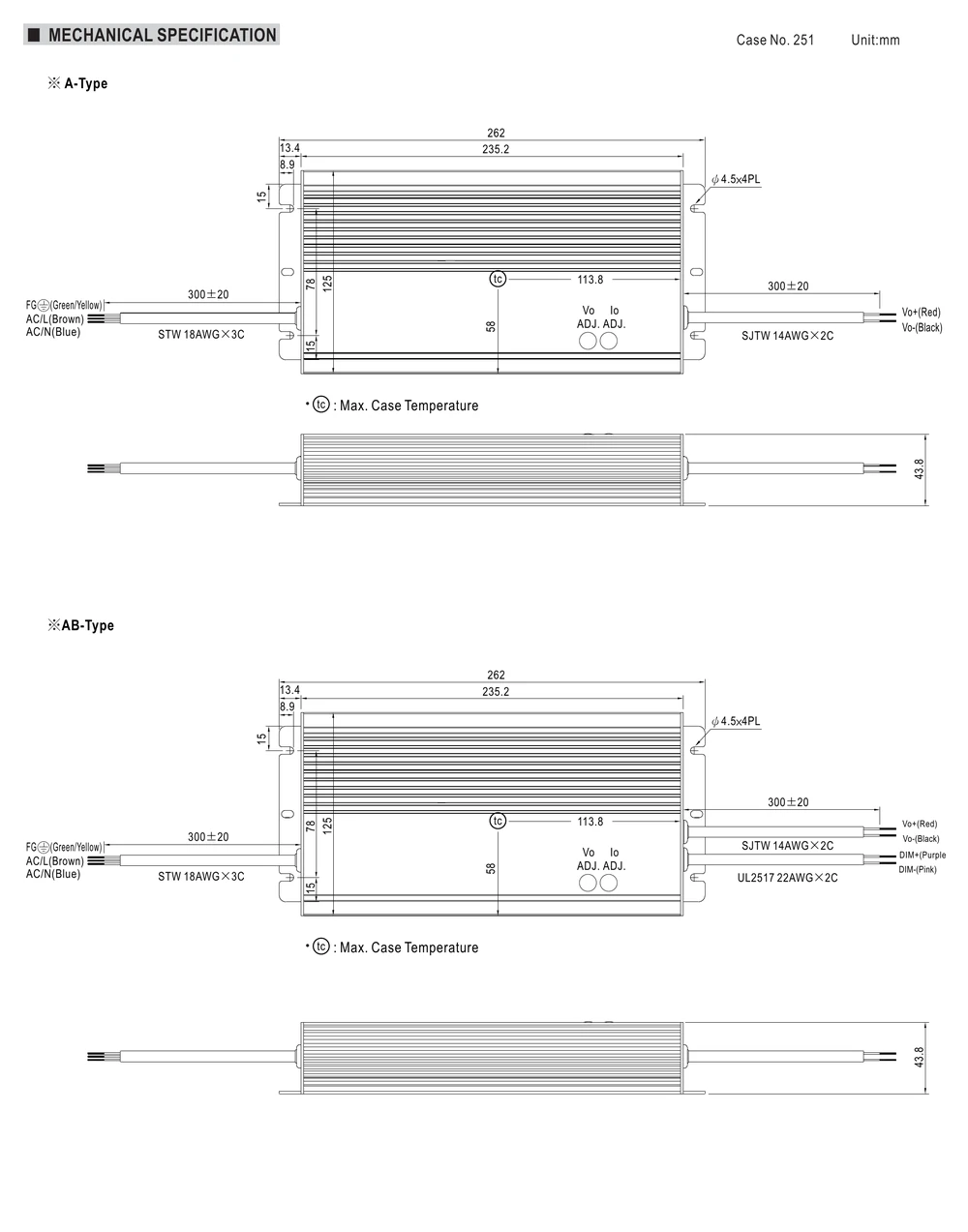

Dimensions

The overall mechanical dimensions of the HVG-480 Series are designed for compact integration into industrial LED lighting systems and professional lighting equipment.

The metal housing provides mechanical protection and efficient heat dissipation, helping maintain reliable performance for high-power 480W LED driver applications including greenhouse lighting, stadium lighting, mining lighting and industrial outdoor lighting.

Terminal Assignment

The HVG-480 Series includes dedicated terminals for AC input, LED output, dimming control and grounding connection, allowing flexible integration into different LED lighting system architectures.

The terminal structure supports:

– AC input connection for 180–528VAC power systems
– LED output connection for 24V / 30V / 36V / 42V / 48V / 54V output models
– Grounding connection for safe system installation
– Dimming control connection on B and AB versions
– Output voltage and current adjustment through built-in potentiometer on A and AB versions

This terminal design enables integration with industrial LED lighting systems, professional lighting controllers and customized LED module applications.

Installation Notes

When installing the HVG-480 Series into LED lighting equipment or industrial lighting systems, users should ensure correct wiring, proper grounding, sufficient ventilation space and compliance with the recommended installation conditions in the official datasheet.

Although the HVG-480 Series uses fanless cooling, adequate airflow and thermal management should be maintained to ensure stable operation under continuous high-power load conditions.

Power wiring, LED output wiring and dimming control wiring should be arranged properly to reduce electrical interference and maintain reliable system performance.

Function Option and Control Wiring

The HVG-480 Series provides different function options according to application requirements:

– A versions provide built-in potentiometer adjustment for output voltage and current settings
– B versions support 3-in-1 dimming including 0–10VDC, 10V PWM signal and resistance adjustment
– AB versions combine output adjustment and 3-in-1 dimming functions

Proper selection of function version allows engineers to match the LED driver with different lighting control systems and brightness management requirements.

Thermal Management Considerations

For high-power LED lighting applications, proper thermal design is important to maintain long-term reliability. The HVG-480 Series uses a metal housing and fanless cooling structure to improve heat dissipation and reduce maintenance requirements.

Installation should consider ambient temperature, enclosure design, airflow conditions and LED system thermal characteristics to ensure stable operation throughout the product lifetime.

Need application and system integration details for the HVG-480 Series? Continue below to explore recommended applications, safety standards, EMC compliance, wiring diagrams, dimming connections and system-level design guidelines for HVG-480-24A/B/AB, HVG-480-48A/B/AB and HVG-480-54A/B/AB configurations.

Applications of HVG-480 Series

The MEAN WELL HVG-480 Series is designed for high-power LED lighting applications requiring a reliable 480W constant voltage and constant current LED driver with wide input capability, high efficiency, flexible dimming options and robust protection features.

With 180–528VAC input range, active PFC function, CV+CC output operation, A/B/AB function options and IP65/IP67 protection versions, the HVG-480 Series provides flexible solutions for professional LED lighting systems, industrial lighting equipment and outdoor high-power LED applications.

• LED greenhouse lighting systems requiring stable 480W power delivery, adjustable output and flexible brightness control
• Stadium lighting and large-area LED lighting installations requiring reliable high-power LED drivers
• Mining lighting applications requiring rugged LED power solutions for demanding industrial environments
• Industrial LED lighting systems, factory lighting and production area illumination requiring long-term reliable operation
• Outdoor LED lighting applications requiring IP65/IP67 protection and wide AC input compatibility
• High-power LED module systems requiring constant voltage and constant current operation
• Professional lighting control systems using 3-in-1 dimming functions including 0–10VDC, PWM and resistance adjustment
• OEM lighting equipment requiring adjustable output voltage/current and flexible LED driver integration
• Commercial and industrial illumination systems requiring efficient 480W LED power conversion
• LED lighting replacement and upgrade projects requiring reliable MEAN WELL high-power LED drivers

Need certification and compliance details for your project? Continue below to review safety standards, EMC information, protection ratings, insulation requirements and system-level installation considerations for the HVG-480 Series.

Certifications and Safety

The MEAN WELL HVG-480 Series is designed for professional LED lighting applications requiring international safety compliance, reliable electrical performance and robust protection features. It is suitable for industrial lighting, outdoor LED systems, greenhouse lighting, stadium lighting and other high-power LED applications requiring stable 480W power delivery.

According to the official HVG-480 Series datasheet, the series is designed to meet international LED lighting safety requirements and industrial application standards:

• UL8750: LED equipment safety compliance for professional LED lighting applications
• IEC/EN 61347 series: LED controlgear safety requirements for LED driver applications
• IP65/IP67 protection options: Enhanced protection against dust and water ingress depending on function version
• Class I, Division 2 hazardous location suitability: Available option for specific industrial lighting applications requiring hazardous environment compliance

The HVG-480 Series incorporates comprehensive protection functions including short circuit protection, over voltage protection, over temperature protection and constant current limiting, helping maintain reliable operation under abnormal electrical conditions.

The series features active PFC function, high efficiency up to 95% and a rugged metal housing design to support stable operation in demanding indoor and outdoor LED lighting environments. A proper system-level design including grounding, wiring, thermal management and enclosure considerations is recommended to achieve optimal safety and EMC performance.

EMC performance should be evaluated according to the final lighting system configuration. Designers should consider installation conditions, cable routing, grounding method, external control wiring and surrounding electromagnetic environment during system integration.
