MEAN WELL DDR-480 Series 480W DIN Rail DC-DC Converter | DDR-480B-24 / DDR-480C-24 / DDR-480D-24

Overview of MEAN WELL DDR-480 Series

The MEAN WELL DDR-480 Series is a 480W DIN rail type DC-DC converter platform designed for industrial automation, railway systems and distributed DC power architectures requiring high-efficiency DC voltage conversion, wide input flexibility and long-term operational reliability. It provides reinforced isolation design, compact DIN rail mounting structure and high power density performance for modern control cabinet integration.

The series supports three input voltage platforms including DDR-480B (16.8–33.6Vdc), DDR-480C (33.6–67.2Vdc) and DDR-480D (67.2–154Vdc), with regulated DC output options of 12V, 24V and 48V, making it suitable for 24V industrial control systems, 48V telecom/communication infrastructure and 110V railway DC power applications.

As part of MEAN WELL’s industrial DIN rail DC-DC converter family, the DDR-480 Series is widely used in railway onboard systems, industrial automation equipment, factory control cabinets, electro-mechanical systems, communication networks and DC distribution architectures. It is commonly specified in procurement as DDR-480B-24 DC-DC converter, DDR-480C-24 DIN rail DC-DC converter, DDR-480D-48 railway DC-DC power supply and 480W industrial DIN rail power converter.

The series features high efficiency up to 93%, ultra-slim 85.5mm width design and supports 150% peak load capability for short-duration high-demand operation. It also integrates full protection functions including reverse polarity protection, under-voltage lockout, over-voltage protection and over-temperature shutdown, ensuring stable operation in harsh industrial environments from -40°C to +80°C. :contentReference[oaicite:0]{index=0}

For system-level scalability, the DDR-480 Series supports current sharing up to 1920W (3+1 parallel operation), enabling redundant and expandable DC power architectures for mission-critical applications. Additional system features include DC OK relay signal output and remote ON/OFF control for intelligent power system integration.

Available models include DDR-480B / DDR-480C / DDR-480D series covering full combinations of 12V, 24V and 48V DC outputs: DDR-480B-12/24/48, DDR-480C-12/24/48, DDR-480D-12/24/48, providing flexible solutions for global industrial and railway DC power system design.

Features of MEAN WELL DDR-480 Series

• 480W DIN rail DC-DC converter platform designed for industrial automation, railway systems and distributed DC power architectures
• Three input voltage types: DDR-480B (16.8–33.6V), DDR-480C (33.6–67.2V), DDR-480D (67.2–154V) for flexible system integration
• Compact ultra-slim 85.5mm width DIN rail design for high-density control cabinet installation
• High efficiency up to 93% for stable and energy-efficient DC power conversion
• 150% peak load capability for short-duration high transient load conditions in industrial systems :contentReference[oaicite:0]{index=0}
• Available models include DDR-480B / DDR-480C / DDR-480D series covering 12V, 24V and 48V DC outputs
• Full model range: DDR-480B-12/24/48, DDR-480C-12/24/48, DDR-480D-12/24/48
• Current sharing capability up to 1920W (3+1 parallel operation) for scalable redundant power systems
• Built-in DC OK relay signal output for real-time power status monitoring
• Remote ON/OFF control for system-level power management and integration
• Reverse polarity protection with MOSFET-based design for input safety
• Under-voltage lockout, over-voltage protection and over-temperature shutdown for system reliability
• Wide operating temperature range from -40℃ to +80℃ for harsh industrial environments
• Reinforced 4KVdc isolation for industrial safety and system protection
• Suitable for railway systems, industrial automation, factory control cabinets, telecom infrastructure and DC distribution systems
• 5-year manufacturer warranty

Need help selecting the right model? Compare DDR-480B vs DDR-480C vs DDR-480D based on input voltage and application requirements.

Model Selection Guide for DDR-480 Series

The MEAN WELL DDR-480 Series offers a focused range of 480W DIN rail DC-DC converter models designed for industrial automation, railway systems and distributed DC power architectures. It allows engineers, OEM buyers and system integrators to select the most suitable model based on input voltage type, output voltage requirement, load current demand, peak-load conditions, system redundancy needs and application environment.

Each model shares the same industrial-grade DIN rail structure, ultra-slim 85.5mm width design, high efficiency performance up to 93%, reinforced isolation design and full protection functions, while providing different input voltage ranges and output voltage configurations for flexible DC system integration in control cabinets, railway onboard systems, telecom infrastructure and industrial DC distribution applications.

16.8–33.6V DC Input Systems (DDR-480B Series)

The DDR-480B series is designed for low-voltage DC bus systems, battery-backed systems and 24V industrial control architectures requiring stable DC-DC conversion.

Common search terms include DDR-480B-24 DC-DC converter, 24V DIN rail DC-DC converter 480W and industrial 24V DC power converter.

This series includes DDR-480B-12, DDR-480B-24 and DDR-480B-48 models, supporting flexible output selection for control systems, automation equipment and distributed DC loads.

33.6–67.2V DC Input Systems (DDR-480C Series)

The DDR-480C series is optimized for 48V DC industrial bus systems, telecom infrastructure and communication equipment requiring higher efficiency power distribution and reduced current loss.

Search demand commonly includes DDR-480C-24 DIN rail converter, 48V DC-DC power supply 480W and railway DC-DC converter 48V system.

This series includes DDR-480C-12, DDR-480C-24 and DDR-480C-48 models, widely used in telecom, automation and DC distribution networks.

67.2–154V DC Input Systems (DDR-480D Series)

The DDR-480D series is designed for high-voltage DC input environments, including railway onboard systems and industrial applications requiring 110V DC bus compatibility.

Common search queries include DDR-480D-48 railway DC-DC converter, 110V DC-DC power supply DIN rail and industrial railway power converter 480W.

This series includes DDR-480D-12, DDR-480D-24 and DDR-480D-48 models for high-voltage DC system integration.

System Design & Application Matching

The DDR-480 Series supports a wide range of DC system architectures, including 24V control systems, 48V telecom systems and 110V railway power systems. Engineers typically select models based on input bus voltage, required output voltage, system power distribution design and environmental requirements such as temperature range, isolation and installation constraints.

Need help selecting the correct DDR-480 model? Match your input voltage system (B/C/D type), required output voltage (12V/24V/48V), installation environment and application type (industrial, telecom or railway) to select the most suitable 480W DIN rail DC-DC converter for your project.

Related MEAN WELL DDR Series Power Supplies

For system design comparison and DC power architecture planning, the following MEAN WELL DDR Series DIN rail DC-DC converters can be compared with the DDR-480 Series across different power levels, input voltage ranges and industrial application requirements:

•
  DDR-15 Series – Ultra-compact low-power DIN rail DC-DC converter for basic control circuits, sensors and embedded electronic systems.
•
  DDR-30 Series – Low-power DIN rail DC-DC converter for industrial control systems, small automation devices and compact electronic equipment requiring stable DC conversion.
•
  DDR-60 Series – Compact 60W DIN rail DC-DC converter for automation systems, control cabinets and distributed low-power DC applications.
•
  DDR-120 Series – 120W DIN rail DC-DC converter for industrial control cabinets, communication systems and medium-load DC power applications.
•
  DDR-240 Series – 240W DIN rail DC-DC converter for industrial automation, railway subsystems and distributed DC power architectures requiring higher output capacity than low-power DDR models.

Need help selecting between DDR-240 and DDR-480?
Compare DDR-15, DDR-30, DDR-60, DDR-120, DDR-240 and the current DDR-480 Series based on system voltage level, output power requirement, DIN rail installation space, efficiency target, parallel operation needs and industrial or railway application environment.

Programmable Output, Remote ON/OFF, Remote Sense, DC OK Signal and Parallel Operation

The MEAN WELL DDR-480 Series provides integrated system-level control functions including DC OK signal output, remote ON/OFF control, Remote Sense compensation and parallel operation capability for advanced industrial automation, railway systems and distributed DC power architectures.

For DDR-480B, DDR-480C and DDR-480D models, the series supports input-type-dependent DC conversion with stable regulated output options of 12V, 24V and 48V. This enables flexible adaptation to 24V industrial control systems, 48V telecom infrastructure and 110V railway DC bus applications.

The remote ON/OFF control function allows external switching of the DC-DC converter through control terminals, enabling system-level power sequencing, standby control, centralized automation logic and PLC-based power management integration.

Remote Sense, DC OK signal and current sharing functions further support stable voltage regulation, real-time power status feedback and scalable DC system expansion for mission-critical applications.

Output Voltage Regulation

The DDR-480 Series provides tightly regulated DC output across all models. Output voltage stability is maintained under varying load conditions, ensuring reliable operation in industrial automation systems, railway onboard equipment and DC distribution cabinets.

The series supports 12V, 24V and 48V output configurations depending on model selection, allowing engineers to match system voltage requirements across different DC architectures.

Remote Sense compensation ensures accurate voltage regulation at the load side by compensating voltage drop on output wiring, improving system stability in high-current installations.

Remote ON/OFF Control

The remote ON/OFF function enables external control of the DDR-480 Series through dedicated control terminals. The power supply can be switched ON or OFF by applying the appropriate control signal, allowing integration with PLCs, industrial controllers and system-level power sequencing logic.

This function is particularly useful in automated systems requiring controlled startup, shutdown sequencing and energy management strategies.

Remote Sense and DC OK Signal

The DDR-480 Series provides Remote Sense functionality to compensate voltage drop across load wiring, ensuring accurate voltage delivery at the point of load in industrial and railway applications.

The DC OK signal provides real-time status feedback of output voltage conditions, enabling system monitoring, fault detection and integration with supervisory control systems.

These functions improve system reliability in distributed DC power architectures and industrial automation environments requiring stable regulated output and diagnostic feedback.

Parallel Operation and Current Sharing

The DDR-480 Series supports active current sharing for parallel operation, enabling scalable DC power expansion up to 1920W (3+1 system configuration).

This allows multiple units to be connected in parallel to increase total output capacity and provide redundancy in high-reliability systems such as industrial automation cabinets, railway power systems and telecom DC distribution networks.

Proper wiring and impedance matching are required to ensure balanced current sharing between units as defined in the installation guidelines.

Need installation and system integration details for the DDR-480 Series? Continue below for mechanical specifications, terminal assignments, wiring diagrams, protection functions, efficiency curves, application guidance and system-level design considerations for DDR-480B / DDR-480C / DDR-480D configurations.

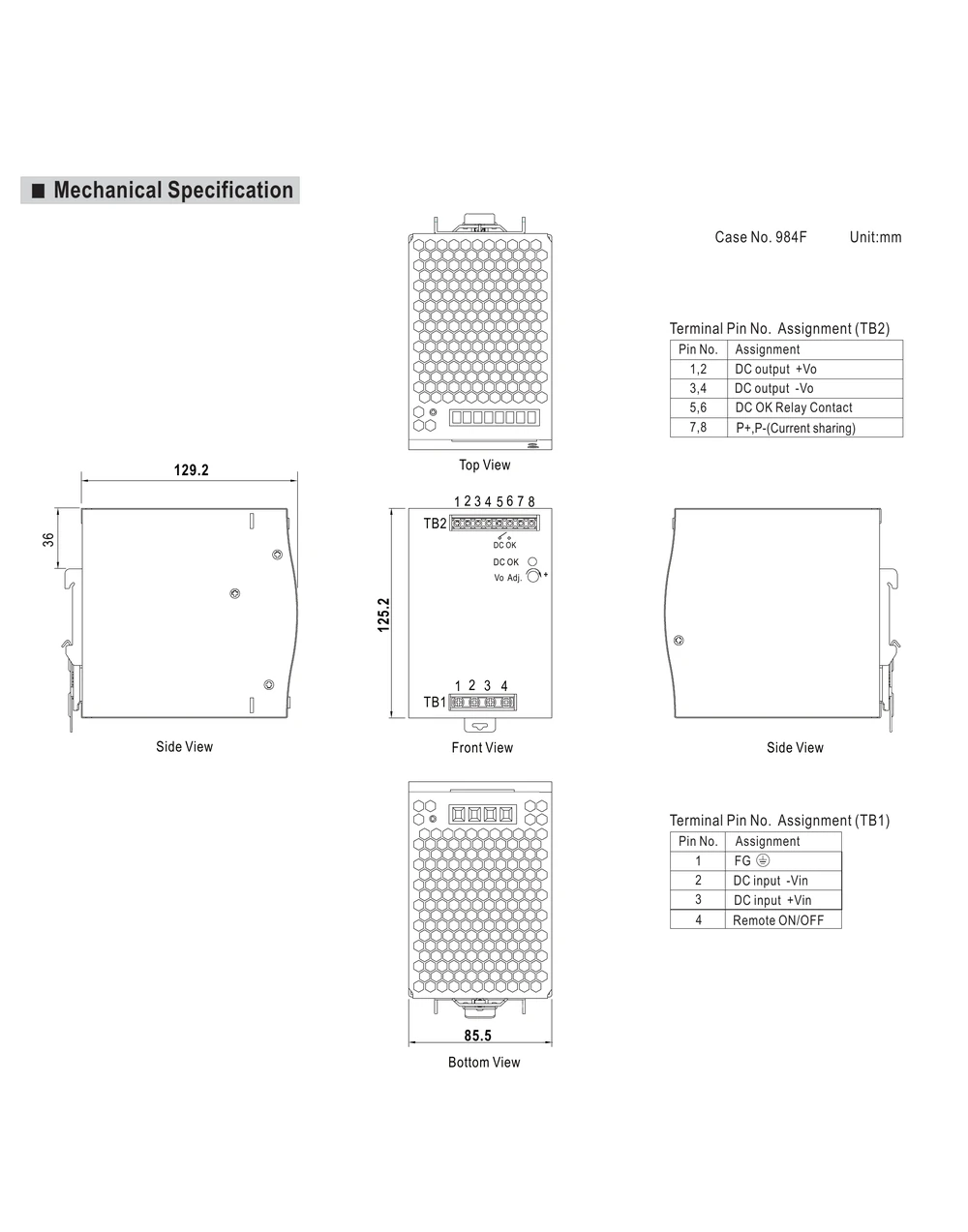

Mechanical Dimensions and Installation

The MEAN WELL DDR-480 Series features a compact 480W DIN rail DC-DC converter design with an ultra-slim 85.5mm width housing optimized for industrial control cabinets, railway systems and distributed DC power architectures. Its DIN rail TS35/7.5 or TS35/15 mounting structure, high efficiency up to 93% and reinforced isolation design make it suitable for industrial automation, railway onboard systems, telecom infrastructure and DC distribution applications.

Dimensions

The overall mechanical size of the DDR-480 Series is 85.5 × 125.2 × 129.2 mm. This compact DIN rail form factor supports 480W DC-DC conversion with three input voltage platforms (DDR-480B / DDR-480C / DDR-480D), providing flexible integration for 24V, 48V and 110V DC systems.

Compared with lower power DIN rail DC-DC converters, the DDR-480 Series is designed for higher power density applications requiring stable DC conversion, wide input flexibility (16.8–154Vdc) and system-level power architecture integration in space-limited industrial environments. :contentReference[oaicite:0]{index=0}

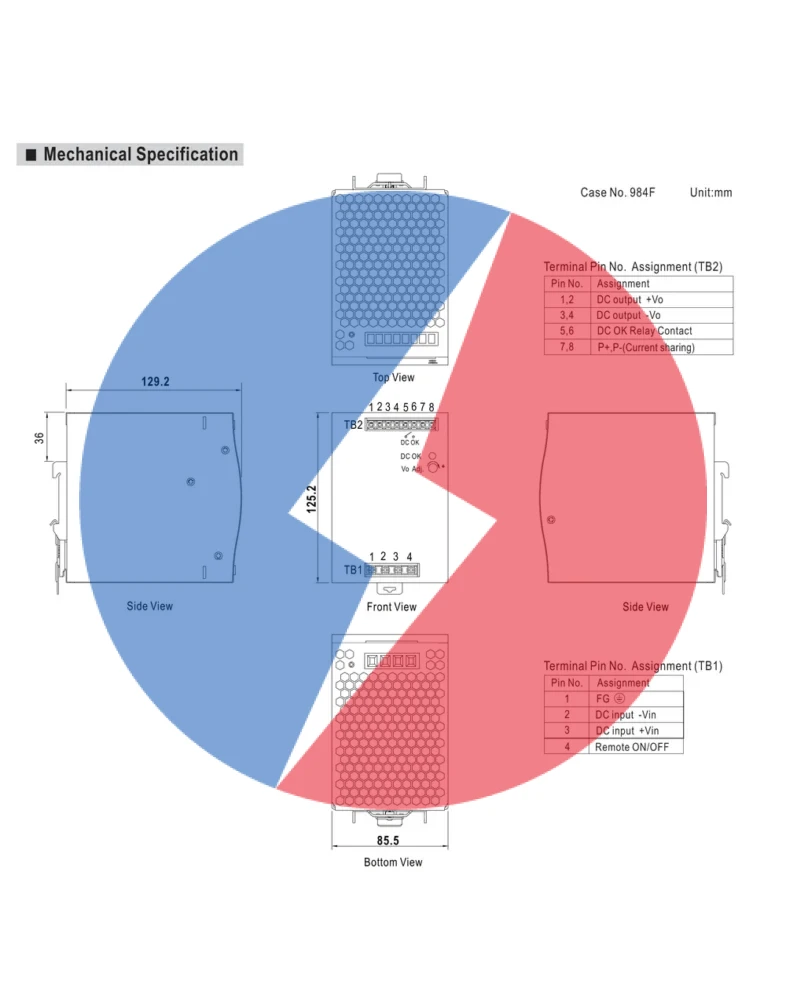

Terminal Assignment

The DDR-480 Series includes DC input terminals (+Vin / -Vin), DC output terminals (+Vo / -Vo), grounding terminal (FG), current sharing terminals (P+ / P-) and control interfaces for system integration.

The terminal structure supports:
– DC input connection for B/C/D type input ranges
– DC output connection for 12V / 24V / 48V regulated output
– Parallel operation via P+ / P- current sharing terminals
– DC OK signal output for system monitoring
– Remote ON/OFF control for external switching

This terminal design enables integration into industrial automation systems, railway DC bus systems and distributed DC power architectures requiring monitoring and control capability.

Installation Notes

When installing the DDR-480 Series into industrial equipment, control cabinets or railway systems, users should ensure correct DIN rail mounting, wiring clearance, grounding method, airflow direction and temperature derating conditions according to the official datasheet.

Because the DDR-480 Series uses natural convection cooling with high efficiency design, sufficient ventilation space must be maintained to ensure stable long-term operation under continuous load conditions. Signal and power wiring should be separated to minimize electromagnetic interference and ensure stable DC regulation and control signal integrity.

Mounting and Accessory Notes

The DDR-480 Series is designed for TS35 DIN rail mounting with secure mechanical locking for industrial environments. Proper installation ensures mechanical stability under vibration and long-term operation in automation and railway systems.

For Remote Sense and control signal wiring (where applicable in system design), wiring should follow twisted-pair routing principles to reduce noise interference and improve signal stability. Local system grounding should follow industrial power distribution best practices.

Parallel Installation Considerations

For systems using multiple DDR-480 units in parallel, current sharing terminals (P+ / P-) must be connected correctly to ensure balanced load distribution. Wiring should be short, low impedance and properly sized to reduce voltage drop and ensure stable current sharing behavior.

Parallel operation enables scalable DC power systems for industrial automation cabinets, railway systems, telecom infrastructure and high-power distributed DC architectures requiring redundancy and increased capacity up to multi-kilowatt system configurations.

Need application and system integration details for the DDR-480 Series? Continue below to explore recommended applications, safety standards, EMC compliance, wiring diagrams and system-level design guidelines for DDR-480B / DDR-480C / DDR-480D configurations.

Applications of DDR-480 Series

The MEAN WELL DDR-480 Series is suitable for a wide range of industrial, railway and DC power system applications requiring a 480W DIN rail DC-DC converter with wide input flexibility (DDR-480B / DDR-480C / DDR-480D), high efficiency performance, reinforced isolation and stable DC output for system-level power distribution.

With high efficiency operation, 85.5mm ultra-slim DIN rail design, current sharing capability (up to 1920W system expansion), Remote ON/OFF control, DC OK signal output and reverse polarity protection, the DDR-480 Series is designed for applications requiring stable DC conversion, scalable power architecture and long-term operational reliability in industrial environments.

• Industrial automation machinery and control systems requiring stable 24V / 48V DC power conversion
• Railway onboard systems and EN50155-related DC power architectures requiring high reliability
• Telecom infrastructure and 48V DC bus systems requiring efficient distributed power conversion
• Factory automation equipment, control cabinets and embedded industrial electronic systems
• DC distribution systems requiring 24V, 48V or 110V DC bus voltage conversion
• Scalable power systems with parallel operation capability for increased system capacity
• High-reliability industrial environments requiring reverse polarity, over-voltage and thermal protection
• Energy systems, battery-buffered DC systems and distributed power architectures
• Industrial machinery and electrical equipment requiring compact DIN rail power integration
• General DC power supply replacement applications in OEM industrial equipment

Need certification and compliance details for your project? Continue below to review safety standards, EMC information, insulation ratings and system-level installation requirements for the DDR-480 Series.

Certifications and Safety

The MEAN WELL DDR-480 Series is designed for industrial, railway and DC power distribution applications requiring international safety compliance, reinforced isolation and reliable DC-DC conversion performance in harsh operating environments. It is suitable for industrial automation, railway onboard systems, telecom infrastructure, factory control cabinets and distributed DC bus architectures requiring stable DIN rail mounted power conversion.

According to the official DDR-480 Series datasheet, the series complies with multiple international safety standards for industrial control and power conversion equipment:

• CB: IEC62368-1 approved for industrial and ICT equipment safety requirements
• UL: UL62368-1 compliant for North American safety standards
• EN/IEC: EN62368-1 system-level safety compliance for global installations
• EAC: TP TC 004 approval for Eurasian market compliance
• Railway standard design compliance: EN50155 system-level application suitability (design-oriented usage)
• Shock & vibration suitability: IEC 61373 design compliance for railway and industrial environments

The DDR-480 Series is designed with reinforced isolation and low leakage current characteristics suitable for industrial DC-DC conversion systems requiring stable electrical separation between input and output circuits.

EMC performance is designed for industrial environments, including immunity to electrostatic discharge, surge, burst and conducted disturbances according to IEC 61000-4 series standards. This ensures stable operation in industrial automation cabinets, railway onboard systems and telecom DC power environments.

For system-level safety, the DDR-480 Series includes reverse polarity protection, under-voltage lockout, over-voltage protection and over-temperature shutdown functions, ensuring reliable operation under abnormal electrical conditions.

As with all industrial DIN rail power devices, final EMC and safety compliance must be verified at system level. Designers should ensure correct grounding, shielding, enclosure design, wiring separation, thermal management and insulation coordination based on the final application environment.

Need more product details before system integration? Continue below to review application guidance, model selection (DDR-480B / DDR-480C / DDR-480D), wiring diagrams, mechanical installation, parallel operation and DC system design considerations.
