MW Mean Well Meanwell 35W Single Output Switching Power Supply LRS-35 series

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category III
100% full load burn-in test
3 years warranty

Mean Well LRS-35 Series Data Sheet Download

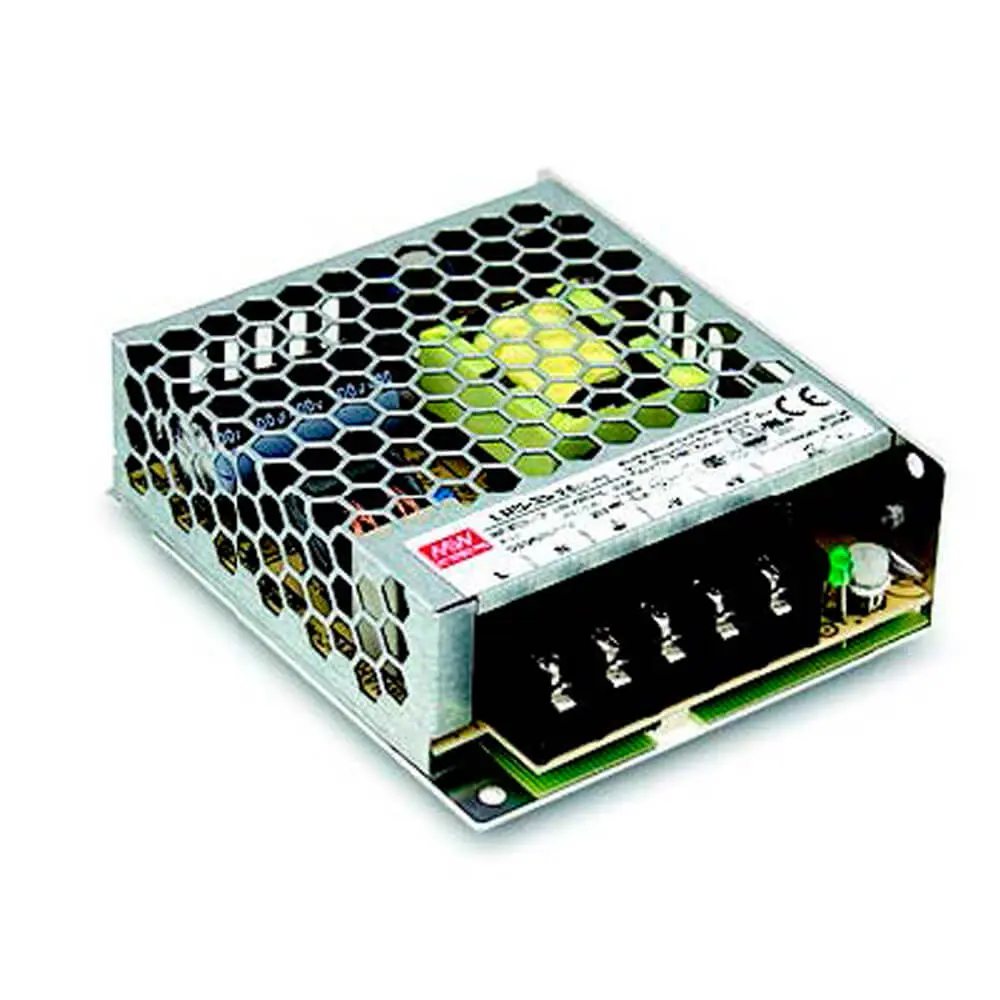

35W Single Output Switching Power Supply LRS-35 Series

Description

Mean Well LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V(Model No.: LRS-35-5), 12V(Model No.: LRS-35-12), 15V(Model No.: LRS-35-15), 24V(Model No.: LRS-35-24), 36V(Model No.: LRS-35-36) and 48V(Model No.: LRS-35-48).

In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-35 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. LRS-35 has the complete protection functions and 5G antivibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-35 series serves as a high price-to-performance power supply solution for various industrial applications.

In LRS Family, there are LRS-35 series, LRS-50 series, LRS-75 series, LRS-100 series, LRS-150F series, LRS-150 series, LRS-200 series, LRS-350 series, LRS-450 series, LRS-600 series.

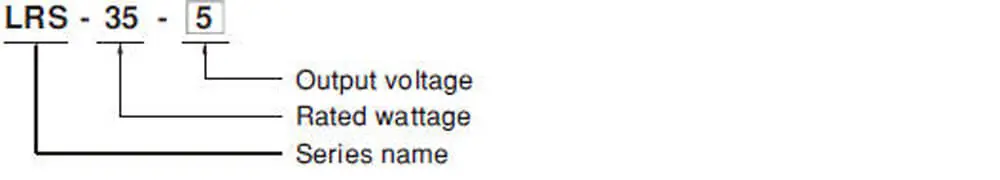

Mean Well LRS-35 Series Model Encoding

lrs-35_model_encoding — LRS-35 Model Encoding

Specification

MODEL		LRS-35-5	LRS-35-12	LRS-35-15	LRS-35-24	LRS-35-36	LRS-35-48
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	RATED CURRENT	7A	3A	2.4A	1.5A	1A	0.8A
	CURRENT RANGE	0~7A	0~3A	0 ~ 2.4A	0~1.5A	0~1A	0~0.8A
	RATED POWER	35W	36W	36W	36W	36W	38.4W
	RIPPLE&NOISE (max.) Note.2	80mVp-p	120mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE	4.5~5.5V	10.2~13.8V	13.5~18V	21.6~28.8V	32.4~39.6V	43.2~52.8V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINEREGULATION Note.4	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION Note.5	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISETIME	1000ms,30ms/230VAC 2000ms,30ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~264VAC 120~373VDC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	82%	86%	86%	88%	88%	89%
	AC CURRENT (Typ.)	0.7A/115VAe 0.42A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 45A/230VAC
	LEAKAGE CURRENT	<0,75mA/240VAC
PROTECTION	OVER LOAD	110 ~ 150% rated output power
	OVER LOAD	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	OVERVOLTAGE	5.75~6.9V	13.8~16.2V	18.75~21.75V	28.8~33.6V	41.4~48.6V	55.2~64.8V
	OVERVOLTAGE	Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30 ~ +70°C (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGETEMP., HUMIDITY	-40 ~ +85C,10~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/C (0~50°C)
	VIBRATION	10~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
	OVER VOLTAGE CATEGORY	III; According to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1,BS EN/EN62477-1; altitude up to 2000 meters
SAFETY & EMC (Note 9)	SAFETY STANDARDS	UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, CCC GB4943.1, BSMI CNS14336-1, EACTP TC 004,AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
	WITHSTAND VOLTAGE	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDe / 25℃/70% RH
	EMC EMISSION	Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,Ke KN32,KN35(for LRS-35-12/24 only)
	EMCIMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,Ke KN32,KN35(for LRS-35-12/24 only)
OTHERS	MTBF	763.6K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	998230mm (LWH)
	PACKING	0.23Kg; 60pcs/14.8Kg/0.88eUFT

Application

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
