MW Mean Well Meanwell 450W Single Output Switching Power Supply LRS-450 series

Features

MEAN WELL patent circuitry and case design
( Application number 202220241473.0, 202230060511.8)
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.10)
3 years warranty
MTBF>1KK hrs

Mean Well LRS-450 Series Data Sheet Download

450W Single Output Switching Power Supply LRS-450 Series

Description

Mean Well LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V (Model No.: LRS-450-5), 12V(Model No.: LRS-450-12), 15V(Model No.: LRS-450-15), 24V(Model No.: LRS-450-24), 36V(Model No.: LRS-450-36) and 48V(Model No.: LRS-450-48).

In addition to the high efficiency up to 92%, with the built-in long life fanLRS-450 can work under -20~+70℃ with full load. LRS-450 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.

In LRS Family, there are LRS-35 series, LRS-50 series, LRS-75 series, LRS-100 series, LRS-150F series, LRS-150 series, LRS-200 series, LRS-350 series, LRS-450 series, LRS-600 series.

Mean Well LRS-450 Series Model Encoding

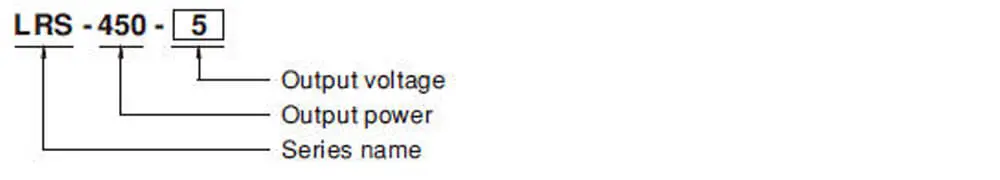

lrs-450_model_encoding — LRS-450 Model Encoding

Specification

MODEL		LRS-450-5	LRS-450-12	LRS-450-15	LRS-450-24	LRS-450-36	LRS-450-48
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	RATED CURRENT	75A	37.5A	30A	18.8A	12.5A	9.4A
	CURRENT RANGE	0 ~ 75A	0 ~ 37.5A	0 ~ 30A	0 ~ 18.8A	0 ~ 12.5A	0 ~ 9.4A
	RATED POWER	375W	450W	450W	451.2W	450W	451.2W
	RIPPLE & NOISE (max.) Note.2	200mVp-p	200mVp-p	200mVp-p	240mVp-p	360mVp-p	360mVp-p
	VOLTAGE ADJ. RANGE Note.3	4.75 ~ 5.5V	11.4 ~ 13.2V	14.25 ~ 16.5V	22.8 ~ 26.4V	34.2 ~ 39.6V	45.6 ~ 52.8V
	VOLTAGE TOLERANCE Note.4	±2.0%	±1.5%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION Note.5	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION Note.6	±2.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME Note.7	1500ms, 50ms/230VAC 1500ms,50ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.8	90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC)
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	87%	90%	90%	91%	92%	92%
	AC CURRENT (Typ.)	10A/115VAC 6A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION (Note.9)	OVER LOAD	105 ~ 150% rated output power
	OVER LOAD	Constant current limiting, unit will shutdown after 3 sec. re-power on to recover
	OVER VOLTAGE	5.75 ~ 6.75V	13.8 ~ 16.2V	18 ~ 21V	27.6 ~ 32.4V	41.4 ~ 48.6V	55.2 ~ 64.8V
	OVER VOLTAGE	Protection type: Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
FUNCTION	FAN ON/OFF CONTROL (Typ.)	RTH3≧50℃ FAN ON, ≦40℃ FAN OFF
ENVIRONMENT	WORKING TEMP.	-20 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	BS IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to BSMI CNS13438, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TP TC 020
OTHERS	MTBF	1508.9K hrs min. Telcordia SR-332(Bellcore); 252.2K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	22512435mm (LWH)
	PACKING	0.85Kg/15pcs/14.11Kg/0.85CUFT

Application

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus

Mean Well LRS-450 Series Video Show

The model No. of Mean Well power supply LRS-450 series in this video is LRS-450-24.
