XLG-200 Series

MW Mean Well Meanwell 200W Constant Power Mode LED Driver XLG-200 series

Features

‧Wide input range 100~305V AC( Class I)

‧Full power output at 70~100% Constant power mode operation

‧Metal case with IP67, suitable for outdoor application

‧Surge protection with 6KV/4KV (10KV/6KV optional)

‧3 in 1 dimming function (Dim to off and Isolation design)

‧India (EESL) version with Input Over Voltage Protection can

survive input voltage stress of 440Vac for 48 hours

‧Protection functions: OVP/SCP/OCP/OTP

‧Life time >50,000 hrs. and 5 years warranty

Mean Well LED Driver XLG-200 Series Data Sheet Download

Mean Well 200W constant power mode led driver XLG-200 series

Description

XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG- 200 series comply with the latest version of IEC61347/ GB7000.1- 2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

In XLG family, there are XLG-20 series, XLG-25 series, XLG-50 series, XLG-75 series, XLG-100 series, XLG-150 series, XLG-200 series, XLG-240 series and XLG-320 series.

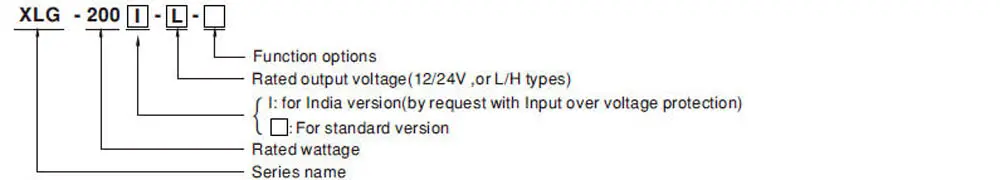

Mean Well LED Driver XLG-200 Series Model Encoding

xlg-200_model_encoding — XLG-200 Model Encoding

Type	Function	Note
Blank	Io and Vo fixed.(For harsh environment)	By request
A	Io adjustable via built-in potentiometer	In Stock
AB	Io adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)	In Stock

Note:

1.12V and 24V models without the AB type.

2.India version needs MOQ for production, please consult MEANWELL for detail.

Specification

MODEL		XLG-200 -12-		XLG-200 -24-
OUTPUT	DC VOLTAGE	12V		24V
	CONSTANT CURRENT REGION Note.2	8.4~ 12V		16.8~ 24V
	RATED CURRENT	16A		8.3A
	RATED POWER	192W		199.2W
	RIPPLE & NOISE (max.) Note.3	150mVp-p		240mVp-p
	CURRENT ADJ. RANGE	Adjustable for A-Type only (via the built-in potentiometer)
		8 ~ 16A		4.15 ~ 8.3A
	VOLTAGE TOLERANCE Note.4	±3.0%		±2.0%
	LINE REGULATION	±0.5%		±0.5%
	LOAD REGULATION	±2%		±1%
	SETUP, RISE TIME Note.6	500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
	HOLD UP TIME (Typ.)	10ms/ 230VAC 10ms/ 115VAC
INPUT	VOLTAGE RANGE Note.5	100 ~ 305VAC 142 ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” section)
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
	TOTAL HARMONIC DISTORTION	THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
	EFFICIENCY (Typ.)	92%		94%
	AC CURRENT	2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
	INRUSH CURRENT(Typ.)	COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
	NO LOAD POWER CONSUMPTION	No load power consumption <0.5W(for standard version)
PROTECTION	OVER CURRENT	95 ~ 108%
		Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	13.5 ~ 18V		27 ~ 34V
		Shut down output voltage, re-power on to recover
	INPUT OVER VOLTAGE Note.7	320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed)
		Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max
	OVER TEMPERATURE	Shut down output voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.	Tcase=+90℃
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +90℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 60℃)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
EMC SAFETY &	SAFETY STANDARDS Note.7	UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1, GB19510.14;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter	Standard		Test Level/Note
		Conducted	BS EN/EN55015(CISPR15) ,GB/T17743		—–
		Radiated	BS EN/EN55015(CISPR15) ,GB/T17743		—–
		Harmonic Current	BS EN/EN61000-3-2 ,GB/T17625.1		Class C @load≥50%
		Voltage Flicker	BS EN/EN61000-3-3		—–
	EMC IMMUNITY	BS EN/EN61547
		Parameter	Standard		Test Level/Note
		ESD	BS EN/EN61000-4-2		Level 3, 8KV air ; Level 2, 4KV contact
		Radiated	BS EN/EN61000-4-3		Level 3
		EFT/Burst	BS EN/EN61000-4-4		Level 3
		Surge	BS EN/EN61000-4-5		4KV/Line-Line 6KV/Line-Earth(6K/10K option)
		Conducted	BS EN/EN61000-4-6		Level 3
		Magnetic Field	BS EN/EN61000-4-8		Level 4
		Voltage Dips and Interruptions	BS EN/EN61000-4-11		>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF	749.06K hrs min. Telcordia SR-332 (Bellcore) ; 200.67Khrs min. MIL-HDBK-217F (25℃)
	DIMENSION	1996335.5mm (LWH)
	PACKING	0.85Kg;16pcs /14.2Kg /0.72CUFT

MODEL			XLG-200 -L-				XLG-200 -H-
OUTPUT	RATED CURRENT		700mA				3500mA
	RATED POWER		200W				200W
	CONSTANT CURRENT REGION Note.2		142 ~285V				27 ~ 56V
	FULL POWER CURRENT RANGE		700~1050mA				3500~5550mA
	OPEN CIRCUIT VOLTAGE (max.)		300V				60V
	CURRENT ADJ. RANGE		Adjustable for A/AB-Type only (via the built-in potentiometer)
			350~1050mA				1750~5550mA
	CURRENT RIPPLE		3.0%(@ Load≥50% rated voltage)
	CURRENT TOLERANCE		±5%
	SET UP TIME	Note.4	500ms/230VAC, 1200ms/115VAC
INPUT	VOLTAGE RANGE	Note.3	100 ~ 305VAC 142VDC ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” ang “ DRIVING METHODS OF LED MODULE”section)
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to “Power Factor Characteristic” section)
	TOTAL HARMONIC DISTORTION		THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
	EFFICIENCY (Typ.)		94%				93%
	AC CURRENT (Typ.)		2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
	INRUSH CURRENT(Typ.)		COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. NO. of PSUs on 16A CIRCUIT BREAKER		3 unit(circuit breaker of type B) / 6 units(circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
	STANDBY POWER CONSUMPTION		Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)
PROTECTION	SHORT CIRCUIT		Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed
	OVER VOLTAGE		301 ~ 360V				61 ~ 85V
			Shut down output voltage, re-power on to recovery
	INPUT OVER VOLTAGE Note.5		320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed)
			Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max
	OVER TEMPERATURE		Shut down output voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.		Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.		Tcase=+90℃
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 60℃)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS Note.5		UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1, GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC	I/P-FG:2KVAC	O/P-FG:1.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3
	EMC IMMUNITY		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6 KV, Line-Line 4KV) (10K/6KV option)
	EMC EMISSION		Parameter			Standard		Test Level/Note
			Conducted			BS EN/EN55015(CISPR15) ,GB/T17743		—–
			Radiated			BS EN/EN55015(CISPR15) ,GB/T17743		—–
			Harmonic Current			BS EN/EN61000-3-2 ,GB/T17625.1		Class C @load≥50%
			Voltage Flicker			BS EN/EN61000-3-3		—–
	EMC IMMUNITY		BS EN/EN61547
			Parameter			Standard		Test Level/Note
			ESD			BS EN/EN61000-4-2		Level 3, 8KV air ; Level 2, 4KV contact
			Radiated			BS EN/EN61000-4-3		Level 3
			EFT/Burst			BS EN/EN61000-4-4		Level 3
			Surge			BS EN/EN61000-4-5		4KV/Line-Line 6KV/Line-Earth(6K/10K option)
			Conducted			BS EN/EN61000-4-6		Level 3
			Magnetic Field			BS EN/EN61000-4-8		Level 4
			Voltage Dips and Interruptions			BS EN/EN61000-4-11		>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF		749.06Khrs min. Telcordia SR-332(Bellcore) ; 200.67Khrs min. MIL-HDBK-217F (25℃)
	DIMENSION		1996335.5mm (LWH)
	PACKING		0.85Kg;16pcs/14.2Kg/0.72CUFT

Application

‧Skyscraper lighting

‧Street lighting

‧Floodlight Lighting

‧Stage lighting

‧Fishing lighting

‧Horticulture lighting

‧Bay lighting

‧DMX power supply

‧Type HL for use in classⅠ, Division 2
